AmphenolСША
CONN N PLUG STR 50 OHM CRIMP
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Тип разъёмаType N
Тип (вилка / розетка)Male
Импеданс50 Ω
Максимальная частота11 GHzМакс.
| Питание | |
|---|---|
| Voltage Rating | 1500 V |
| Характеристики по постоянному и переменному току | |
| Frequency - Max | 11 GHz |
| Impedance | 50Ohm |
| Условия эксплуатации и корпус | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bag |
| Другое | |
| Base Product Number | 1721 |
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-174, 188, 188A, 316, LMR-100, M17/119-RG174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | - |
| Housing Color | Silver |

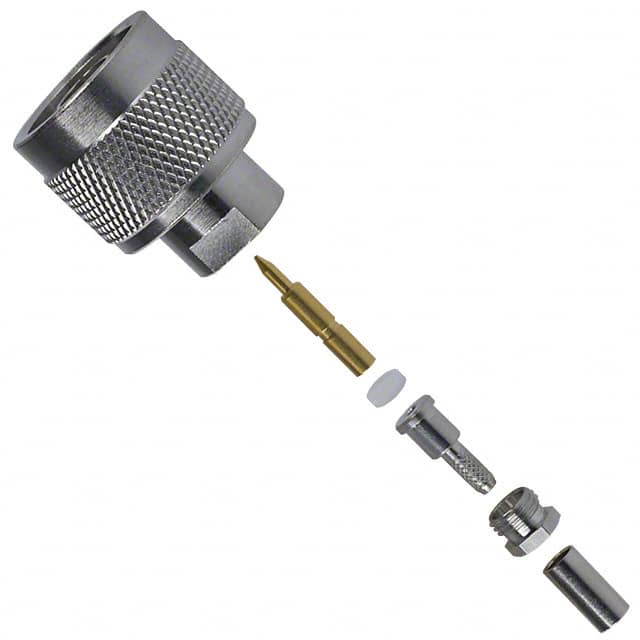

| Includes | 6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Hex Nut, 1 Insulator |
| Ingress Protection | - |
| Insertion Loss | 0.15dB |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Product Status | Active |
| Series | - |
| Shield Termination | Crimp |
