172128
AmphenolUnited States

172128

ActiveCoaxial Connector (RF) Assemblies

CONN N PLUG STR 50 OHM CRIMP

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Connector styleType N
GenderMale
Impedance50 Ω
Max frequency11 GHzMax
Power
Voltage Rating1500 V
AC and DC characteristics
Frequency - Max11 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBag
Other
Base Product Number1721
Body FinishWhite Bronze
Body MaterialBrass
Cable GroupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleN Type
Connector TypePlug, Male Pin
Contact TerminationCrimp
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorSilver

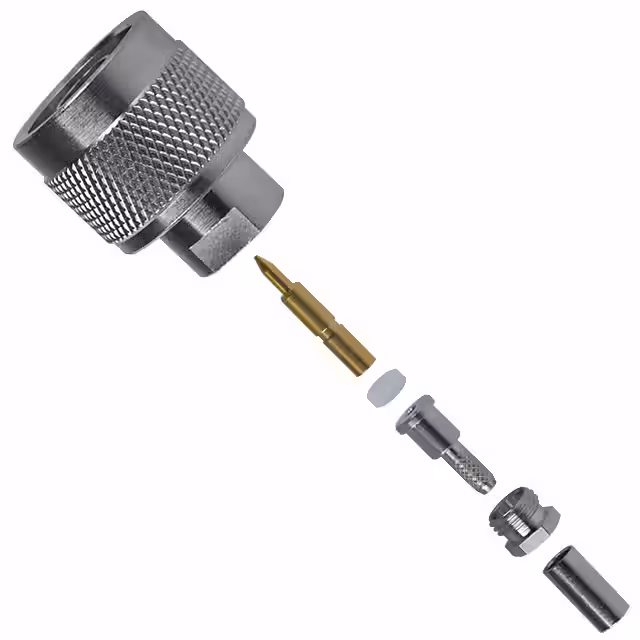

Includes6 pcs - 1 Connector, 1 Barrel, 1 Contact, 1 Ferrule, 1 Hex Nut, 1 Insulator
Ingress Protection-
Insertion Loss0.15dB
Mating Cycles500
MfrAmphenol RF
Number of Ports1
Product StatusActive
Series-
Shield TerminationCrimp
