JAMСША

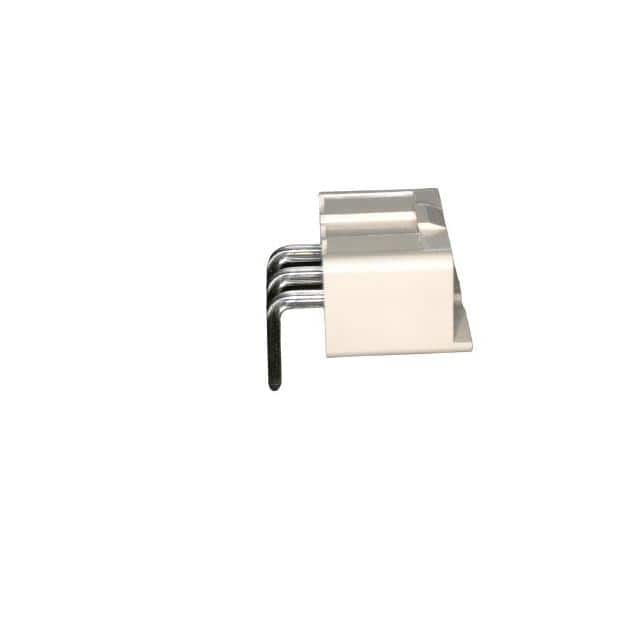

WAFER SIDE SVK CONNECTOR, 3P
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов3
Число рядов1
Шаг3.96 mm
Тип (вилка / розетка)Male
Номинальный ток10 AМакс.
| Питание | |
|---|---|
| Current Rating (Amps) | 10A |
| Voltage Rating | 300VAC/DC |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.315" (8.00mm) |
| Mated Stacking Heights | - |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -25°C~105°C |
| Package | Bulk |
| Другое | |
| Applications | - |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish Thickness - Post | - |
| Contact Length - Mating | - |
| Contact Length - Post | 0.142" (3.60mm) |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | - |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | JAM |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | - |
| Pitch - Mating | 0.156" (3.96mm) |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | * |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
