AmphenolСША

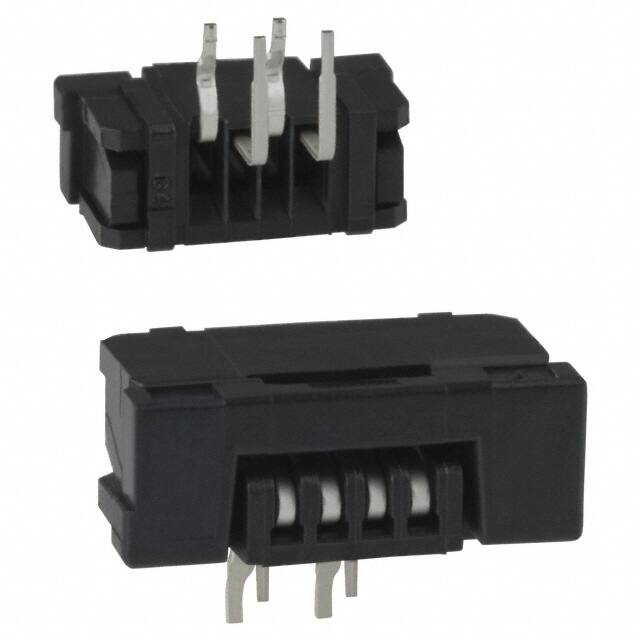

CONN FFC BOTTOM 4POS 1.00MM R/A
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов4
Шаг1 mm
Номинальный ток1 AМакс.
| Питание | |
|---|---|
| Current Rating (Amps) | 1A |
| Voltage Rating | 100V |
| Условия эксплуатации и корпус | |
| Height Above Board | 0.157" (4.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C~85°C |
| Package | Tray |
| Другое | |
| Actuator Color | Black |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Base Product Number | SLW4 |
| Cable End Type | Notched or Tabbed |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mfr | Amphenol ICC (FCI) |
| Number of Positions | 4 |
| Pitch | 0.039" (1.00mm) |
| Product Status | Active |
| Series | SLW-R |
| Termination | Solder |
