Taiwan Semiconductor CorporationТайвань, Китай

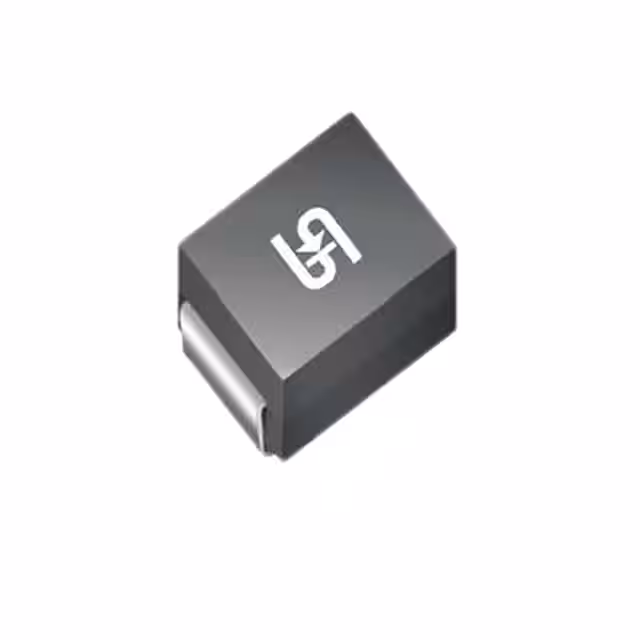

S12GCHM6G
Diodes - Rectifiers - SingleDIODE GEN PURP 400V 12A DO214AB
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Обратное напряжение400 V
Средний выпрямленный ток12 A
Прямое падение напряжения1.1 VМакс. · 12 A
ТипStandardStandard Recovery >500ns，> 200mA (Io)
| Питание | |
|---|---|
| Current - Average Rectified (Io) | 12A |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 12 A |
| Условия эксплуатации и корпус | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Другое | |
| Base Product Number | S12G |
| Capacitance @ Vr, F | 78pF @ 4V, 1MHz |
| Diode Type | Standard |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Discontinued at Digi-Key |
| Series | Automotive, AEC-Q101 |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
