StegoГермания
LED-022

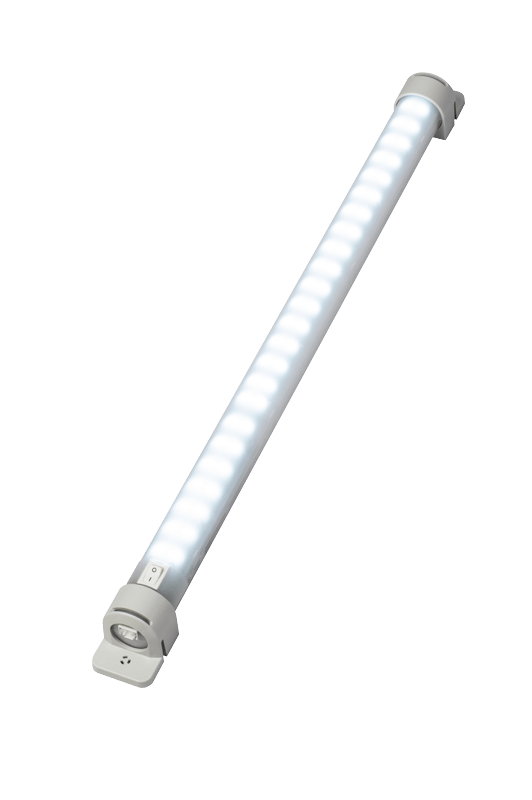

ПроизводитсяDie optimale Lampe für den Schaltschrank: Die kompakte und leuchtstarke Varioline LED Schaltschrankleuchte. Mit bis zu 1700 Lm Lichtstrom für gute Sicht und Arbeitssicherheit in großen Schaltschränken. Der blendfreie, um 360° drehbare Leuchtkörper ist mit Mid-Power-LEDs ausgestattet. Lange, wartungsfreie Lebensdauer von 60.000 Stunden.
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Operating voltage | 100 V - 240 V |
| Power consumption | 16 W |
| Характеристики по постоянному и переменному току | |
| Frequency | 50;60 Hz |
| Условия эксплуатации и корпус | |
| Height | 44 mm |
| Mounting | Screw |
| Operating temperature | -40 °C - 40 °C |
| Storage temperature | -40 °C - 85 °C |
| Другое | |
| 02200.0-00 | On/off switch |
| 02220.0-00 | without |
| Accessory 1 | Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m |
| Accessory 2 | Connection cable 2 x AWG 16 with female connector, 2 m |
| Accessory 3 | Separate female connector for cable connection |
| Accessory 4 | Separate male connector for cable connection |
| AC/DC | AC |
| Casing | Plastic, translucent |
| Connection | 2-pole connector with snap lock |
| Connection type | Connector plug |
| Depth | 600 mm |
| Device type | LED enclosure lamps |
| Illuminant | LED |
| Item number accessories 1 | 244359 |
| Item number accessories 2 | 244357 |
| Item number accessories 3 | 264057 |
| Item number accessories 4 | 264058 |
| Luminous colour | 6500 K |
| Luminous flux | 1730 Lm |
| Operating humidity | ≤90 % RH |
| Protection class | II |
| Protection type | IP20 |
| Service life | >60000 h |
| Storage humidity | ≤90 % RH |
| Weight | 300 g |
| Width | 44 mm |
