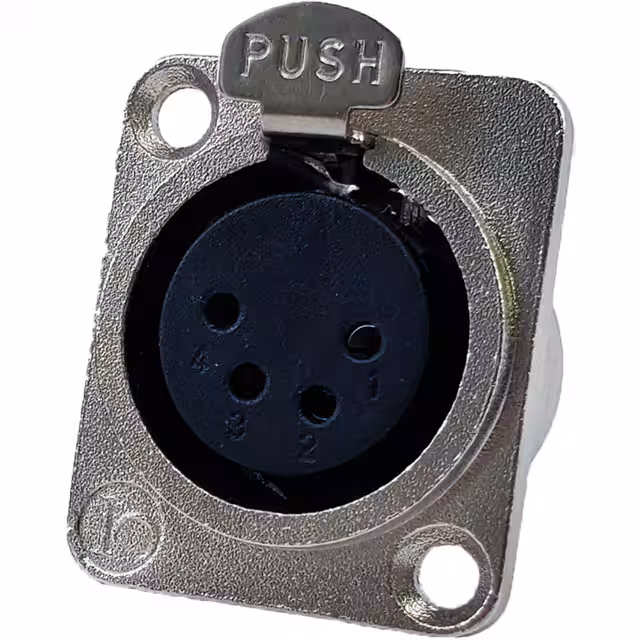

JL SERIES,4 PIN XLR FEMALE RECEP
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов4
Тип (вилка / розетка)Female
Номинальный ток10 AМакс.
| Питание | |
|---|---|
| Current Rating (Amps) | 10A |
| Voltage Rating | 125VAC |
| Условия эксплуатации и корпус | |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C~70°C |
| Package | Tray |
| Shell Size - Insert | XLR |
| Shell Size, MIL | - |
| Другое | |
| Applications | Audio, Aviation, Communication Systems |
| Backshell Material, Plating | - |
| Cable Opening | - |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | - |
| Contact Material | Phosphor Bronze |
| Fastening Type | Latch Lock |
| Features | Ground |
| Ingress Protection | - |
| Insert Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mfr | IO Audio Technologies |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Metal |
| Product Status | Active |
| Series | JL |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shielding | Unshielded |
| Termination | Solder Cup |
