StegoГермания

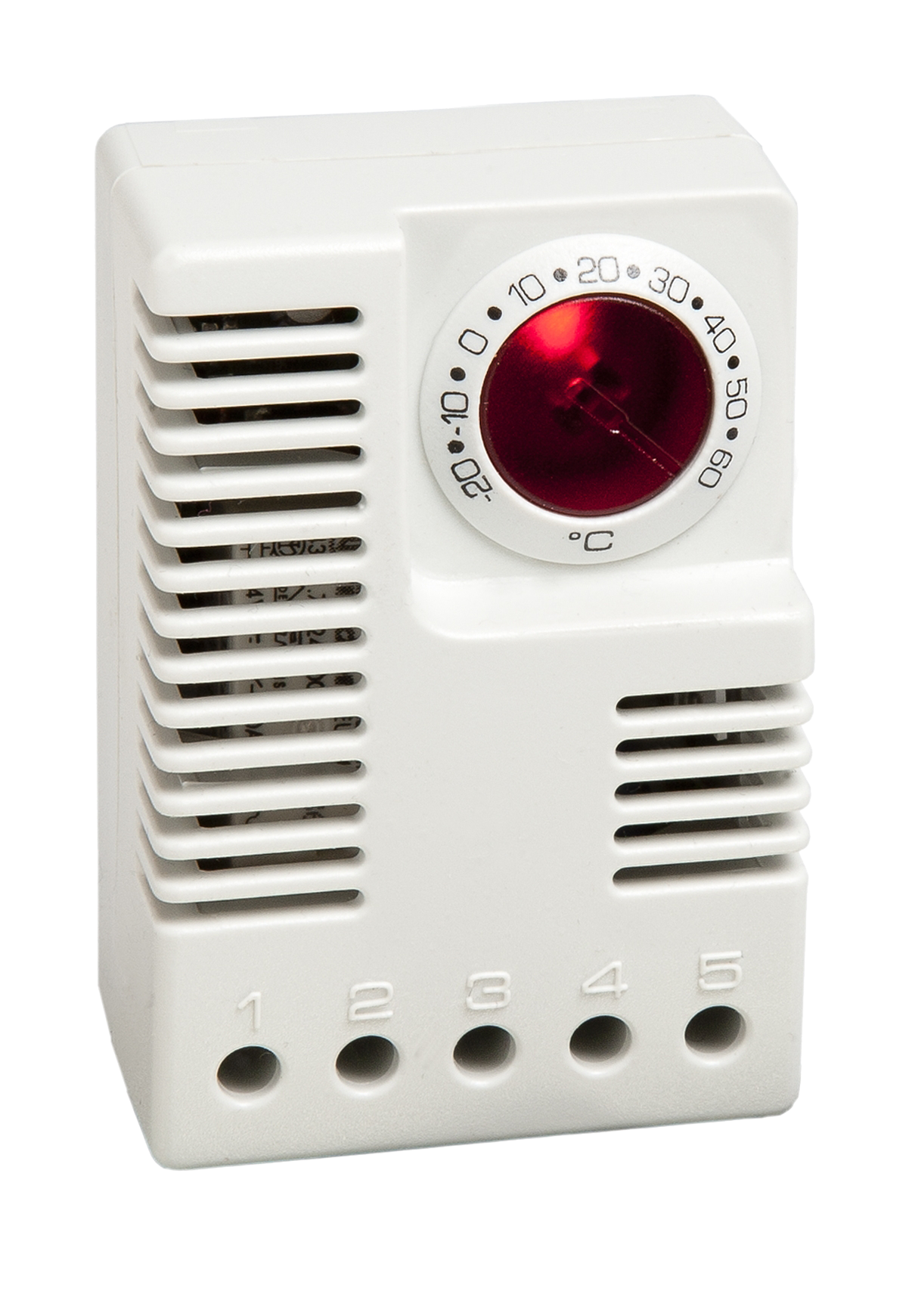

ETR-011
ПроизводитсяElektronisches Thermostat zur Steuerung von Heizungen, Kühlgeräten, Filterlüftern oder Signalgebern. Erfasst die Umgebungstemperatur und schaltet über die Ausgangsrelais mit Wechselkontakt. Ist z.B. eine Heizung in Betrieb leuchtet die integrierte LED.
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Inrush current | 16 A |
| Power consumption | 1 W |
| Reference voltage | 5 V |
| Reference voltage 2 | 120 VAC |
| Reference voltage 2 ohmic | 120 VAC |
| Reference voltage dc ohmic | 24 VDC |
| Reference voltage inductive maximum | 240 VAC |
| Reference voltage ohmic | 240 VAC |
| Switching current | 5 mA |
| Switching current inductive | 1,6 A |
| Switching current ohmic | 8 A |
| Условия эксплуатации и корпус | |
| Height | 64,5 mm |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |
| Operating temperature | -40 °C - 85 °C |
| Storage temperature | -40 °C - 85 °C |
| Другое | |
| 01131.0-00 | -20 °C - 60 °C | 230 V | 4,2 A |
| 01131.9-00 | -4 °F - 140 °F | 120 V | 10 s | 0,5 Nm max. |
| AC/DC | AC |
| Casing | Plastic to UL94 V-0, light grey |
| Connection | 5-pole clamp: rigid wire/stranded wire with wire end ferrule 2.5 mm² (AWG 14) |
| Contact type | Relay |
| Depth | 38 mm |
| Design | Changer |
| Device type | Thermostats |
| Minimal switching capacity | 0,3 W |
| Note | Wire end ferrules must be used for connections with stranded wires. Switching resistive load (switching inductive load). |
| Operating display | LED |
| Operating humidity | ≤90 % RH |
| Protection type | IP20 |
| Reaction time | 5 s |
| Sensor | NTC |
| Service life | >50000 cycles |
| Storage humidity | ≤90 % RH |
| Switching capacity | 8 (1.6) A (AC) ; 100 W (DC) |
| Switching differential | 4 K |
| Switching differential tolerance | ± 1 K |
| Weight | 70 g |
| Width | 42 mm |
