StegoГермания

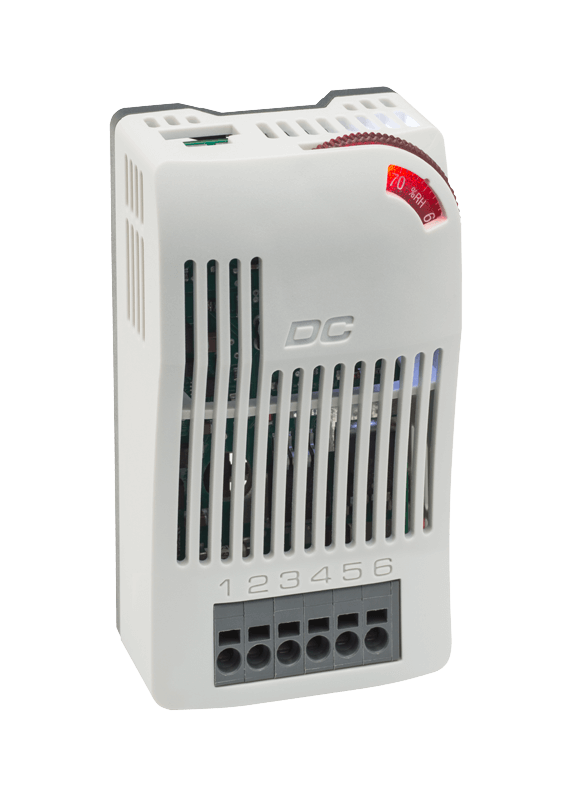

DCF-010

Производится

Elektronischer Hygrostat mit integriertem Schaltmodul zur Regelung von DC Geräten in Schaltschränken und Gehäusen. Als Schließer (NO) ausgelegt, schaltet er alle gängigen Verbraucher in Schaltschrank-Applikationen: Lüfter, Kühler, Signalgeber.

Подобрать аналог Спросить AI FAEДаташит PDF

Все аналоги

Полный отчёт

Технические параметры

Питание
Inrush current	24 A
Inrush current duration	10 s
Operating voltage	20 V - 56 V
Power consumption	1 W
Reference voltage ohmic	20...56 VDC
Условия эксплуатации и корпус
Height	93 mm
Mounting	Clip for 35 mm DIN rail, EN 60715
Storage temperature	-40 °C - 80 °C
Switch-on temperature	5 °C
Другое
01012.0-20	15 A (DC) \| 15 A \| -40 °C - 40 °C
01012.0-21	13 A (DC) \| 13 A \| -40 °C - 50 °C
01012.0-22	11 A (DC) \| 11 A \| -40 °C - 60 °C
AC/DC	DC
Casing	Plastic to UL94 V-0, light grey
Connection	6-pole clamp: stranded wire 1.5 mm² (AWG 16); max. 2.5 mm² (AWG 12)
Contact type	MOSFET
Depth	44 mm
Design	Normally open (NO)
Device type	Hygrostat; DC applications
External sensor	Cable 2 m with snap-in male connector
Note	Secondary switch function: Versions with a secondary switch function can also react to temperature and thus offer even greater contactor protection for the electronics. Switching differential: 3K (+1K tolerance) at +25 °C (+77 °F), 50% RH. Wire end ferrules must be used for connections with stranded wires.
Operating display	LED
Operating humidity	≤90 % RH
Protection type	IP20
Reaction time	5 s
Service life	>100000 cycles
Setting range	40 % RH - 90 % RH
Setting range 2	5 °C
Storage humidity	≤90 % RH
Switching differential	4 % RH
Switching differential tolerance	± 1 % RH
Weight	120 g
Width	53 mm
