WeEn SemiconductorsНидерланды

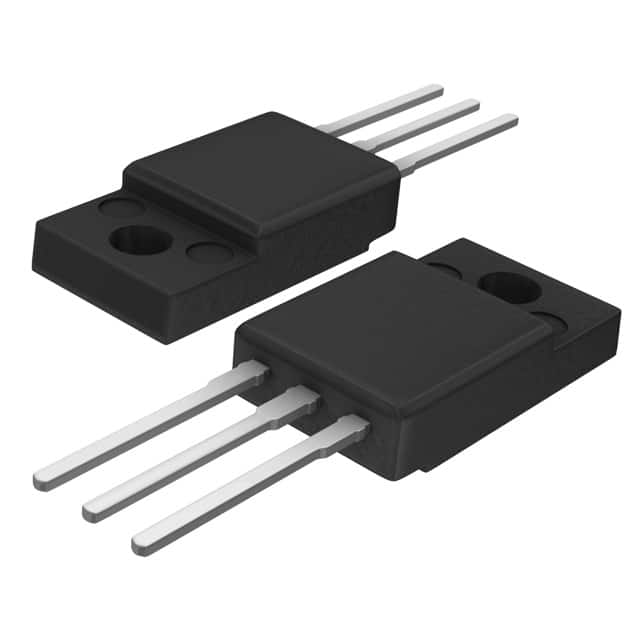

TRIAC 800V 25A TO220F
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Hold (Ih) (Max) | 75 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 275A |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - Off State | 800 V |
| Условия эксплуатации и корпус | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Tube |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F |
| Другое | |
| Base Product Number | BTA425 |
| Configuration | Single |
| Mfr | WeEn Semiconductors |
| Product Status | Active |
| Series | - |
| Triac Type | Standard |
