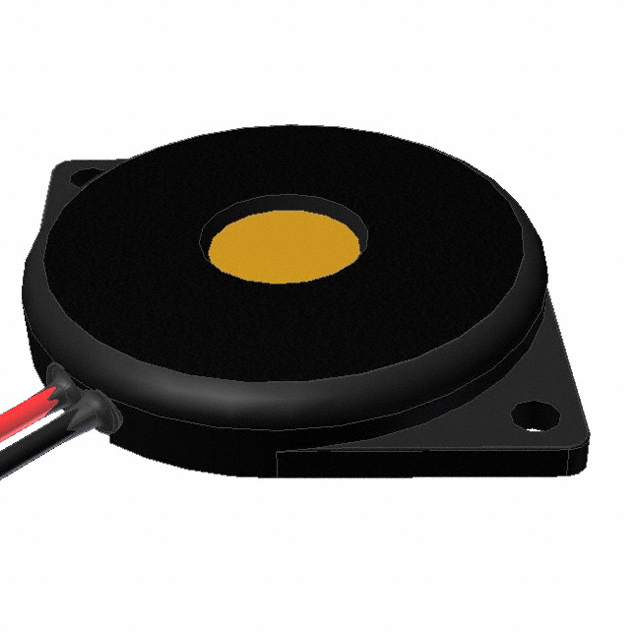

BUZZER PIEZO 10V 24MM FLANGE
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current - Supply | 8mA |
| Voltage Range | 1 ~ 30V |
| Voltage - Rated | 10 V |
| Характеристики по постоянному и переменному току | |
| Frequency | 6kHz |
| Условия эксплуатации и корпус | |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature | -30°C ~ 85°C |
| Package | Bulk |
| Size / Dimension | 0.945" Dia (24.00mm) |
| Другое | |
| Approval Agency | - |
| Driver Circuitry | Transducer, Externally Driven |
| Duration | - |
| Input Type | Peak-Peak Signal |
| Mfr | PUI Audio, Inc. |
| Operating Mode | Single Tone |
| Port Location | Top |
| Product Status | Active |
| Ratings | - |
| Series | AT |
| Sound Pressure Level (SPL) | 88dB @ 10V, 10cm |
| Technology | Piezo |
| Termination | Wire Leads |
