Preci-DipШвейцария

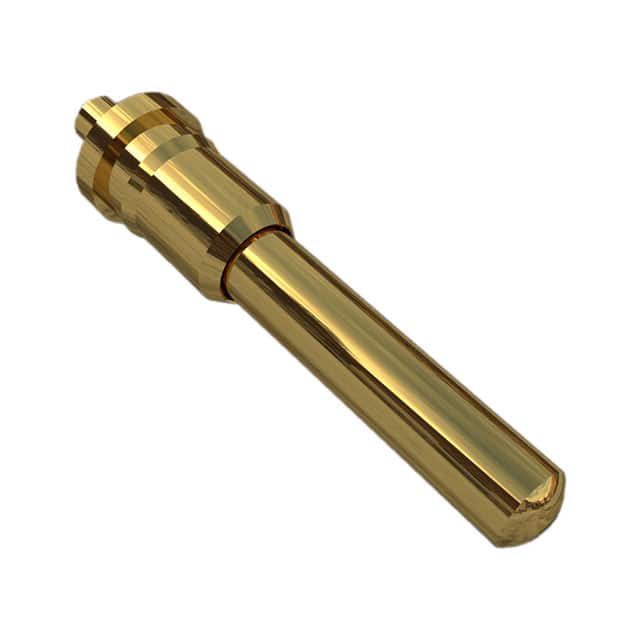

CONTACT SPRING LOADED SMD GOLD
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current Rating (Amps) | 3A |
| Условия эксплуатации и корпус | |
| Maximum Working Height | 0.295" (7.49mm) |
| Minimum Working Height | 0.240" (6.10mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Pad Layout Dimension | Circular - 0.072" (1.83mm) (TH) |
| Plunger Size | 0.042" (1.07mm) Dia |
| Recommended Working Height | - |
| Другое | |
| Base Product Number | 90163 |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Features | - |
| Material Flammability Rating | - |
| Mating Cycles | 40000 |
| Mfr | Preci-Dip |
| Operating Force - Initial | 25.49gf |
| Operating Force - Mid Compression | 61.18gf |
| Product Status | Active |
| Series | - |
