ebm-papst Inc.Германия

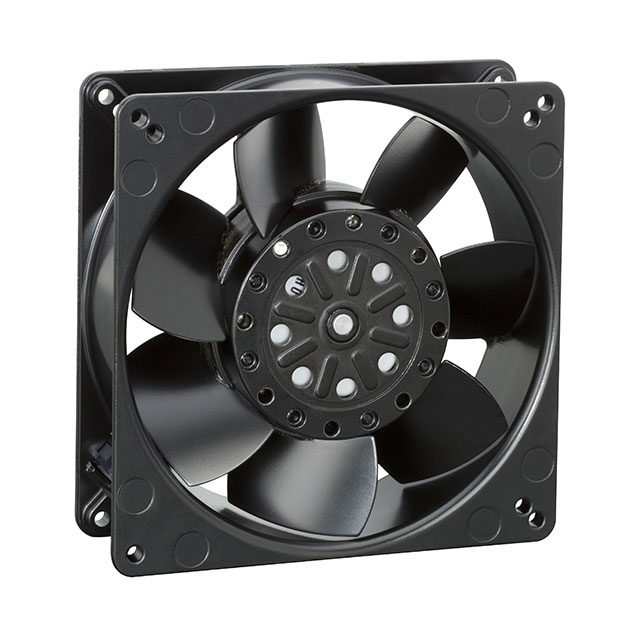

FAN AXIAL 135X38MM 230VAC TERM
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 30.00W |
| Voltage Range | - |
| Voltage - Rated | 230VAC |
| Характеристики по постоянному и переменному току | |
| Noise | 46.0dB(A) |
| Условия эксплуатации и корпус | |
| Lifetime @ Temp. | 45000 Hrs @ 40°C |
| Operating Temperature | -31 ~ 158°F (-35 ~ 70°C) |
| Package | Bulk |
| Size / Dimension | Square - 135mm L x 135mm H |
| Другое | |
| Air Flow | 138.0 CFM (3.86m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 5656 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 2700 RPM |
| Series | 5600 |
| Static Pressure | - |
| Termination | 2 Terminals |
| Weight | 1.8 lbs (816.5 g) |
| Width | 38.00mm |
