532

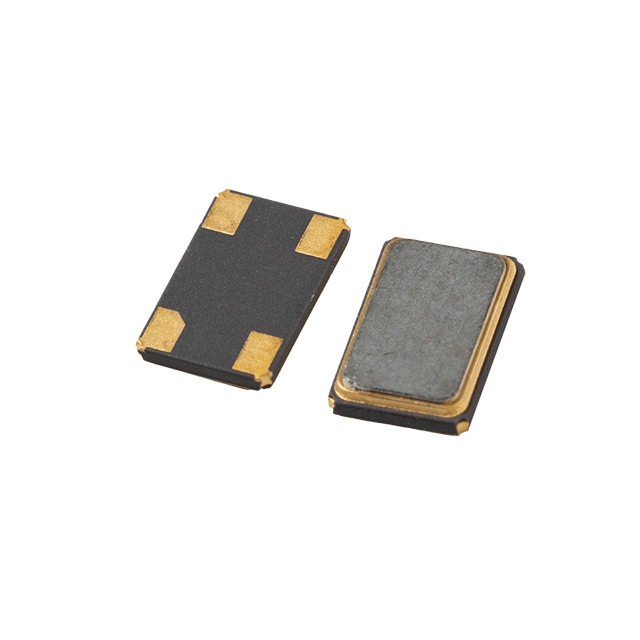

ПроизводитсяCTS Model 532 is a low cost, small size, high performance Temperature Compensated Crystal Oscillator [TCXO]. Employing analog IC technology that provides a clipped sine wave output, high-order temperature compensation engine; coupled with a fundamental quartz crystal M532 has excellent stability and low jitter/phase noise performance. Download the CTS components are stocked and sold through a global network of distributors & sales representatives. Select your preferred partner in the link below.
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Voltage (V) | 1.8V / 2.5V / 2.8V / 3.0V / 3.3V |
| Характеристики по постоянному и переменному току | |
| Frequency Range (MHz) | 13 - 52 |
| Frequency Stability (PPM) | ±0.5 / ±1.0 / ±1.5 / ±2.0 / ±2.5 |
| Условия эксплуатации и корпус | |
| Package (mm) | 5.0x3.2 SMD |
