TE ConnectivityШвейцария

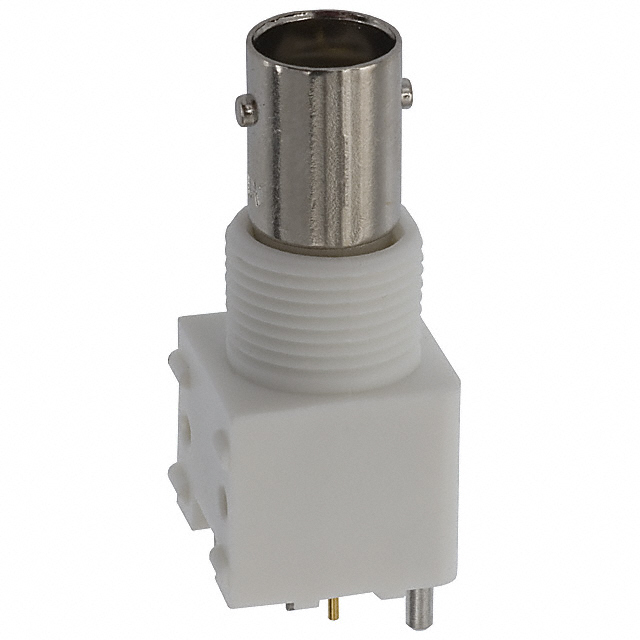

CONN TWINAX JACK STR PCB
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Тип разъёмаBNC
Тип (вилка / розетка)Female
| Питание | |
|---|---|
| Voltage Rating | 500 V |
| Характеристики по постоянному и переменному току | |
| Impedance | Non-Constant |
| Условия эксплуатации и корпус | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Package | Bulk |
| Другое | |
| Base Product Number | 5221198 |
| Body Finish | Nickel |
| Body Material | Zinc |
| Cable Group | - |
| Center Contact Material | Brass; Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC, Twinaxial |
| Connector Type | Jack, Female Socket and Male Pin |
| Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) |
| Fastening Type | Bayonet Lock |
| Features | Board Guide, Isolated |
| Housing Color | Natural, Silver |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 200 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | Coaxicon |
| Shield Termination | Solder |
