TE ConnectivityШвейцария

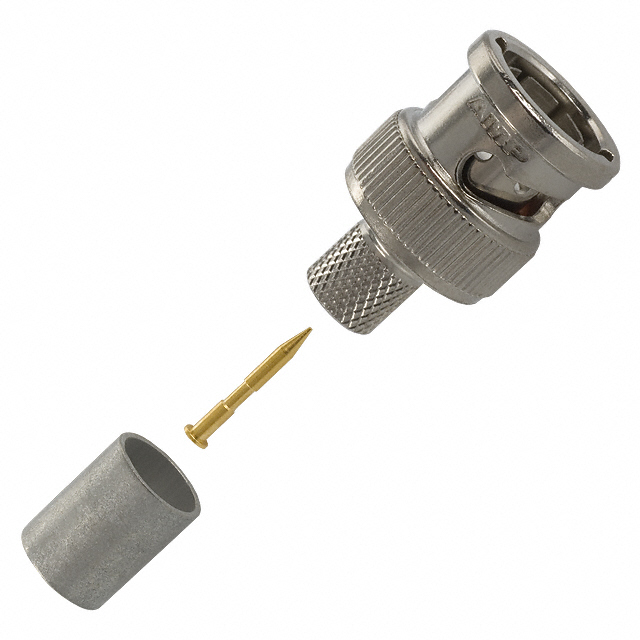

CONN BNC PLUG STR 75 OHM CRIMP
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Тип разъёмаBNC
Тип (вилка / розетка)Male
Импеданс75 Ω
Максимальная частота2 GHzМакс.
| Питание | |
|---|---|
| Voltage Rating | 500 V |
| Характеристики по постоянному и переменному току | |
| Frequency - Max | 2 GHz |
| Impedance | 75 Ohms |
| Условия эксплуатации и корпус | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -55°C ~ 85°C |
| Package | Bulk |
| Другое | |
| Base Product Number | 5221185 |
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Cable Group | Belden 8281, 8281F, 9231 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Plug, Male Pin |
| Contact Termination | Crimp |
| Dielectric Material | Polyethylene (PE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Ingress Protection | - |
| Insertion Loss | 0.15dB |
| Mating Cycles | 500 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
