Würth ElektronikГермания

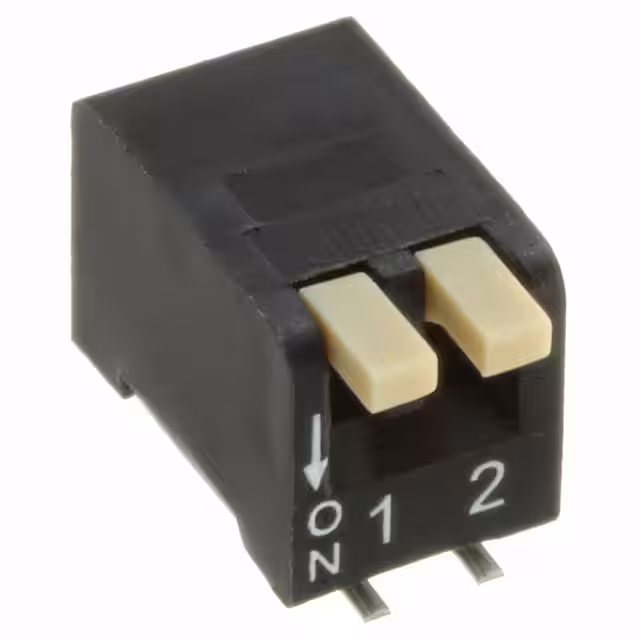

SWITCH PIANO DIP SPST 25MA 24V
Все аналоги
Полный отчётТехнические параметры
Основные параметры
СхемаSPST
Номинальный ток25 mAМакс.
| Питание | |
|---|---|
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Условия эксплуатации и корпус | |
| Height Above Board | 0.275" (6.99mm) |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Другое | |
| Actuator Level | Raised |
| Actuator Type | Piano |
| Body Material | Polyphenylene Sulfide (PPS) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | - |
| Electrical Life | 2,000 Cycles |
| Features | - |
| Length | 0.239" (6.08mm) |
| Mechanical Life | 5,000 Cycles |
| Mfr | Würth Elektronik |
| Number of Positions | 2 |
| Pitch | 0.100" (2.54mm), Full |
| Product Status | Obsolete |
| Series | WS-DISU |
| Termination Style | Gull Wing |
| Washable | No |
