TE ConnectivityШвейцария

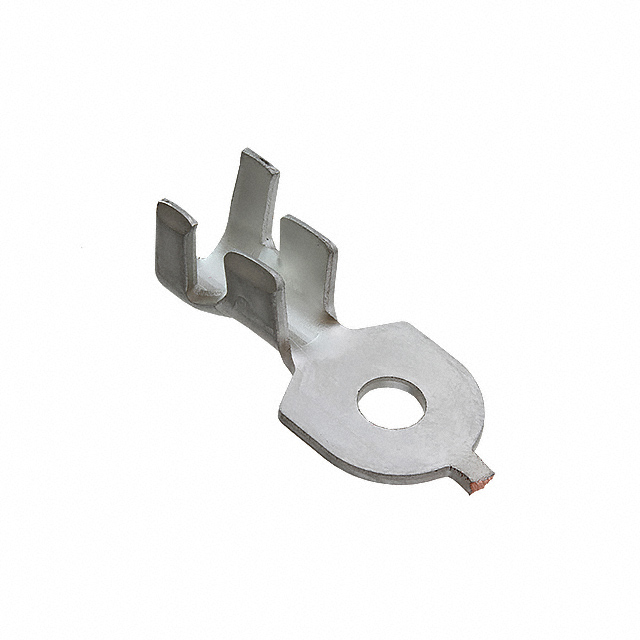

CONN RING D-SHAPE 8-10AWG #10
Все аналоги
Полный отчётТехнические параметры
| Условия эксплуатации и корпус | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Stud/Tab Size | 10 Stud |
| Другое | |
| Base Product Number | 4180 |
| Color | - |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | - |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.220" ~ 0.315" (5.59mm ~ 8.00mm) |
| Length - Overall | 1.105" (28.07mm) |
| Material - Insulation | - |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | - |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.050" (1.27mm) |
| Width - Outer Edges | 0.550" (13.97mm) |
| Wire Gauge | 8-10 AWG |
Изображения
Документы
К этому компоненту пока не привязаны документы.
