ebm-papst Inc.Германия

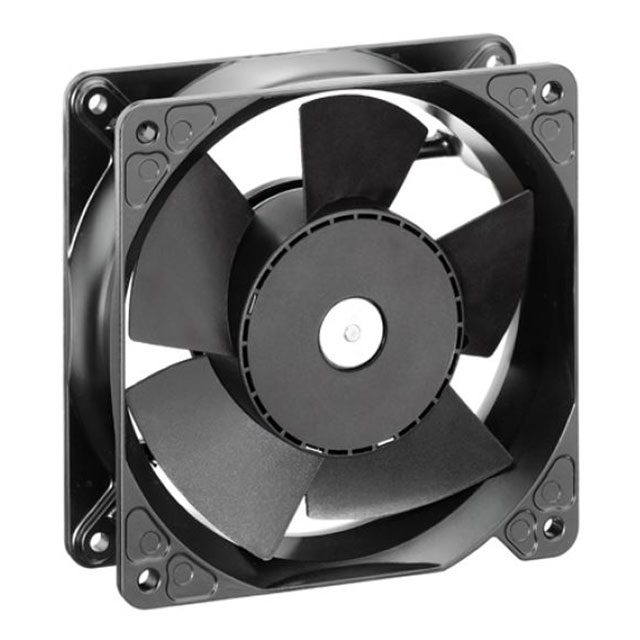

FAN AXIAL 119X38MM 12VDC WIRE
Все аналоги
Полный отчётТехнические параметры
| Питание | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 21.6 W |
| Voltage Range | 9 ~ 15VDC |
| Voltage - Rated | 12VDC |
| Характеристики по постоянному и переменному току | |
| Noise | 65.0dB(A) |
| Условия эксплуатации и корпус | |
| Lifetime @ Temp. | 65000 Hrs @ 40°C |
| Operating Temperature | -4 ~ 149°F (-20 ~ 65°C) |
| Package | Box |
| Size / Dimension | Square - 119mm L x 119mm H |
| Другое | |
| Air Flow | 182.4 CFM (5.11m³/min) |
| Approval Agency | CE |
| Base Product Number | 4112N |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Aluminum |
| Mfr | ebm-papst Inc. |
| Product Status | Active |
| RPM | 6000 RPM |
| Series | 4100N |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.86 lb (390.09 g) |
| Width | 38.00mm |
