METZ CONNECT USA Inc.Германия

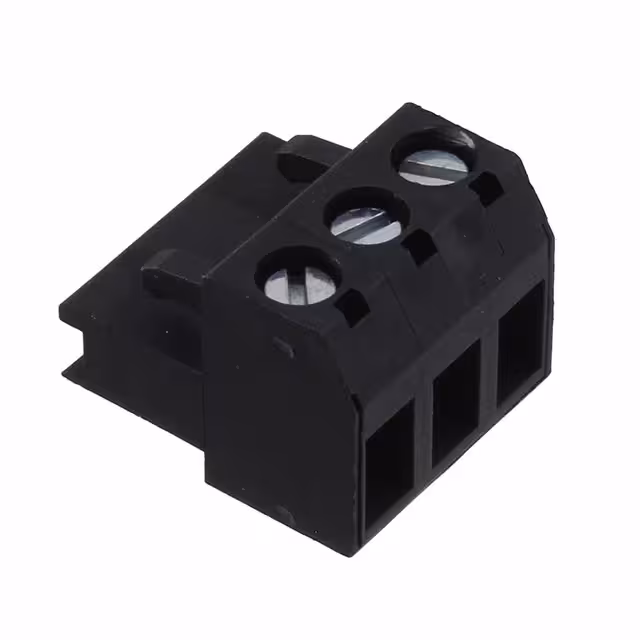

SCREW TYPE TERMINAL BLOCK, PLUG,
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов3
Шаг5 mm
| Питание | |
|---|---|
| Current - IEC | - |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.500" (12.70mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -40°C~105°C |
| Package | Bulk |
| Screw Size | M3 |
| Другое | |
| Color | Black |
| Contact Material | Copper Beryllium |
| Contact Mating Finish | Silver |
| Contact Tail Length | - |
| Features | Retention Latches (Non-Wire Side) |
| Header Orientation | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | METZ CONNECT USA Inc. |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Pitch | 0.197" (5.00mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 3 |
| Product Status | Active |
| Series | - |
| Termination Style | Screw - Rising Cage Clamp |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 12-22 AWG |
| Wire Gauge or Range - mm² | 0.33-2.5mm² |
| Wire Strip Length | - |
