WeidmüllerГермания
CONN PCB PLUG MALE 10POLE 3.81MM
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов10
Шаг3.81 mm
| Питание | |
|---|---|
| Current - IEC | 17.5A |
| Current - UL | 10 A |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Условия эксплуатации и корпус | |
| Insulation Height | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~120°C |
| Package | Bulk |
| Screw Size | M2 |
| Другое | |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Ejector Latches, Retention Latches (Non-Wire Side) |
| Header Orientation | - |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch | 0.150" (3.81mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 10 |
| Product Status | Active |
| Series | Omnimate SC |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Torque - Screw | - |
| Type | Plug, Male Pins |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 0.2-1.5mm² |
| Wire Strip Length | 7mm |

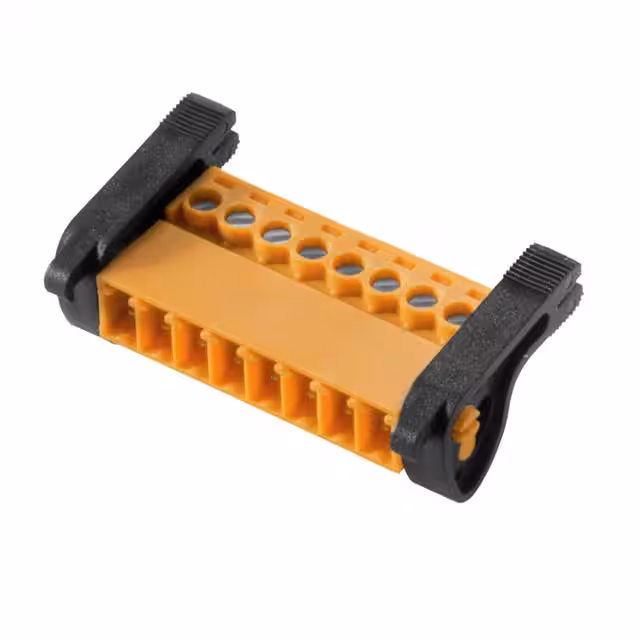

Изображения
