AmphenolСША

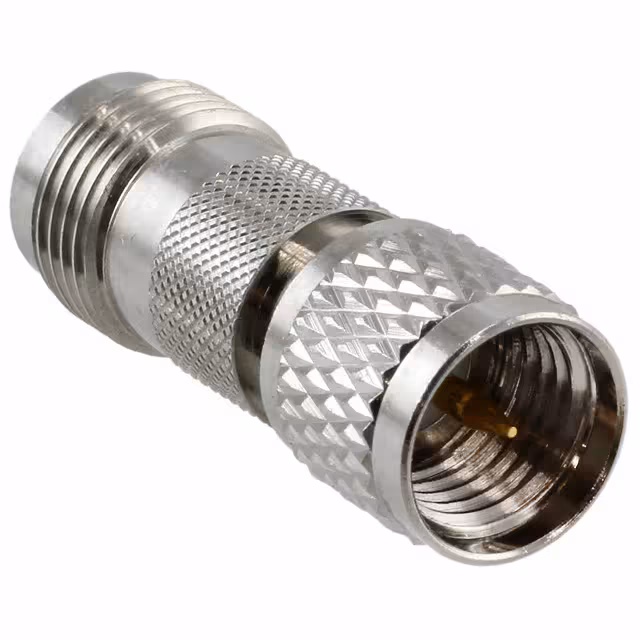

CONN ADAPT UHF MINI PLUG-TNC JCK
Все аналоги
Полный отчётТехнические параметры
| Характеристики по постоянному и переменному току | |
|---|---|
| Frequency - Max | 2.5 GHz |
| Impedance | 50Ohm |
| Условия эксплуатации и корпус | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Другое | |
| Adapter Series | TNC to UHF, Mini |
| Adapter Type | Plug to Jack |
| Base Product Number | 2422 |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | UHF Mini Plug, Male Pin |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Threaded |
| Features | - |
| Includes | - |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | Amphenol RF |
| Product Status | Active |
| Series | - |
| Style | Straight |
