WeidmüllerГермания

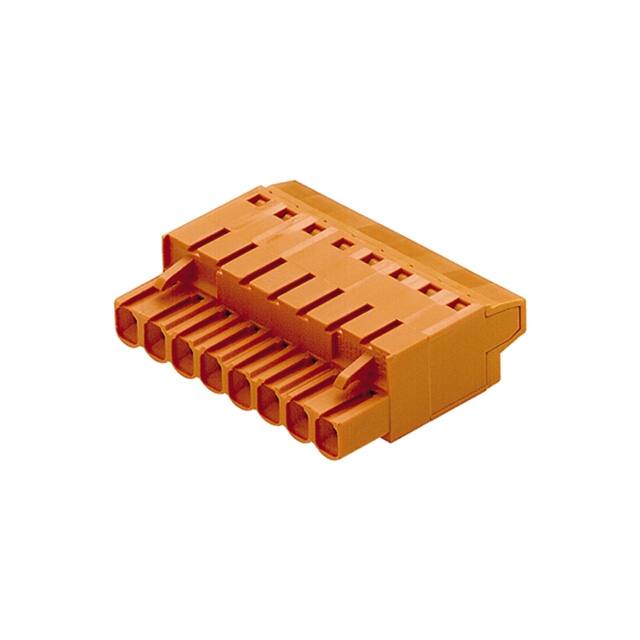

TERM BLOCK PLUG 8POS STR 5.08MM
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов8
Шаг5.08 mm
| Питание | |
|---|---|
| Current - IEC | 27A |
| Current - UL | 17 A |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.480" (12.20mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~100°C |
| Package | Bulk |
| Screw Size | M2.5 |
| Другое | |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Retention Latches (Non-Wire Side) |
| Header Orientation | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Pitch | 0.200" (5.08mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 8 |
| Product Status | Active |
| Series | Omnimate BL |
| Termination Style | Screw - TOP Clamp |
| Torque - Screw | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 14-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Strip Length | 13mm |
