Полный отчётТехнические параметры
| Характеристики по постоянному и переменному току | |
|---|---|
| Frequency (Max GHz) | 4 |
| Impedance (Ohms) | 50 |
| Условия эксплуатации и корпус | |
| Mil Qualified | Not Mil Qualified |
| Panel Mounting Feature | Not Applicable |
| Size Category | Subminiature |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Другое | |
| Attributes | Body Finish |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Country of Origin | CN |
| Coupling Mechanism | Threaded |
| Details | Gold |

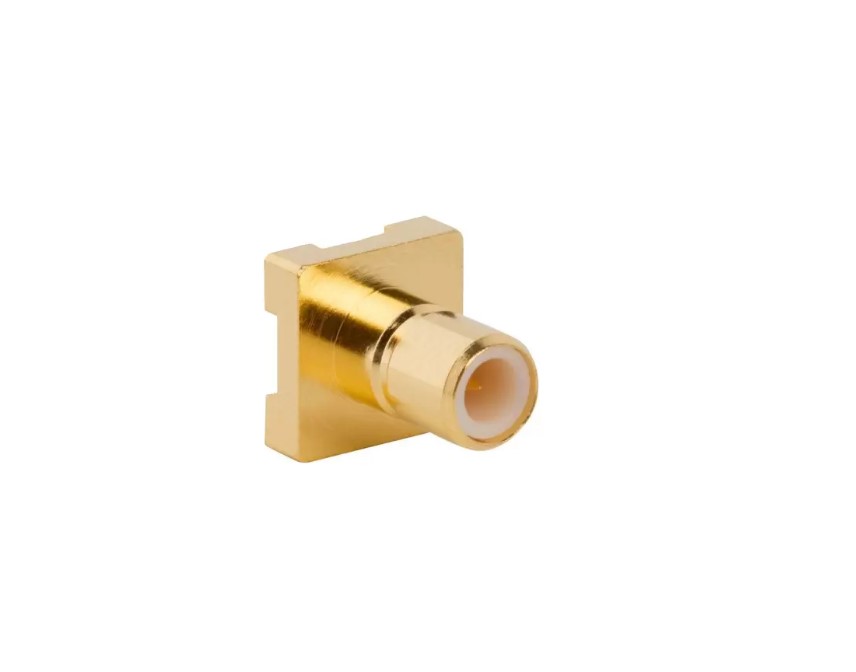

| Document Title | 142307 PDF Customer Drawing (Size: 33.4 KB) |
| ECCN | EAR99 |
| Extended Dielectric Length | 0.025 Inches (0.64 mm) |
| Gender | Jack |
| HTS Code | 8536.69.4010 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Isolated | No |
| Low PIM | No |
| Mating Cycles (Min) | 500 |
| Non Magnetic | Contains Magnetic Materials |
| Orientation | Straight |
| PFAS | Contains PFAS |
| Ports | 1 (Single Port) |
| Publish Date | 5/7/2026 |
| Termination Style | Round Post |
| Thread Direction | Standard |
| Type | |
