WeidmüllerГермания

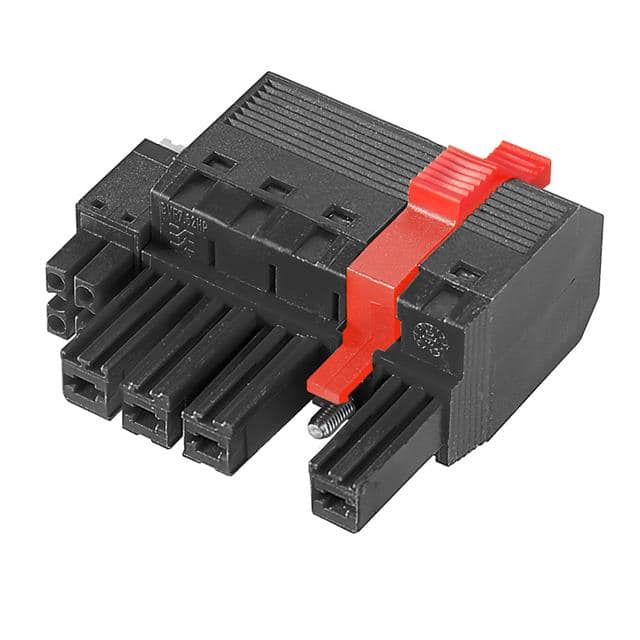

TERM BLOCK PLUG 7POS STR 7.62MM
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов7
Шаг7.62 mm
| Питание | |
|---|---|
| Current - IEC | 38A |
| Current - UL | 33 A |
| Voltage - IEC | 1 kV |
| Voltage - UL | 600 V |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.958" (24.33mm) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -50°C~125°C |
| Package | Bulk |
| Screw Size | - |
| Другое | |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | - |
| Features | Latch Lock |
| Header Orientation | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Weidmüller |
| Number of Levels | Hybrid |
| Number of Positions | 7 |
| Pitch | 0.300" (7.62mm) |
| Plug Wire Entry | 180° |
| Positions Per Level | 7 (3 Power + 4 Signal) |
| Product Status | Active |
| Series | Omnimate BV |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Torque - Screw | - |
| Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 8-24 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Wire Strip Length | 12mm |
