AmphenolСША

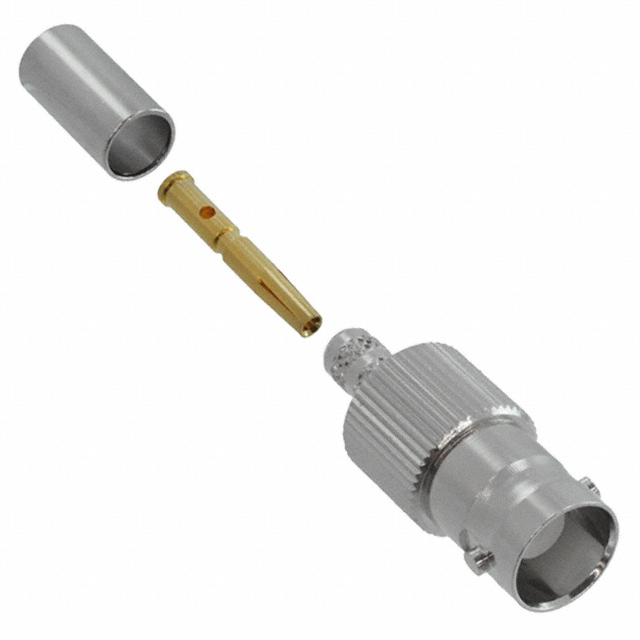

CONN BNC JACK STR 50 OHM CRIMP
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Тип разъёмаBNC
Тип (вилка / розетка)Female
Импеданс50 Ω
Максимальная частота4 GHzМакс.
| Питание | |
|---|---|
| Voltage Rating | 500 V |
| Характеристики по постоянному и переменному току | |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohms |
| Условия эксплуатации и корпус | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Другое | |
| Base Product Number | 1121 |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Ingress Protection | - |
| Insertion Loss | 0.2dB |
| Mating Cycles | 500 |
| Mfr | Amphenol RF |
| Number of Ports | 1 |
| Packaging | Bulk |
| Part Status | Active |
| Series | - |
| Shield Termination | Crimp |
