MolexСША

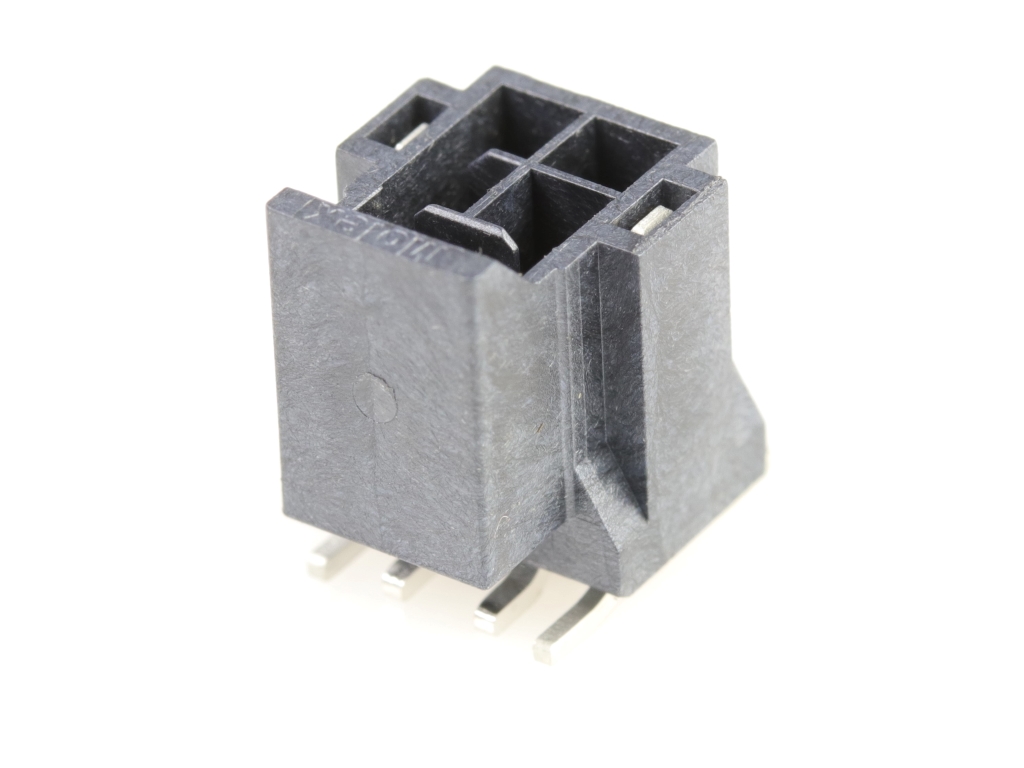

CONN HEADER SMD 4POS 2.5MM
Все аналоги
Полный отчётТехнические параметры
Основные параметры
Число контактов4
Число рядов2
Шаг2.5 mm
Тип (вилка / розетка)Male
Номинальный ток4 AМакс.
| Питание | |
|---|---|
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VAC |
| Условия эксплуатации и корпус | |
| Insulation Height | 0.382" (9.70mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Другое | |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Base Product Number | 105429 |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Pick and Place, Solder Retention |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Overall Contact Length | - |
| Pitch - Mating | 0.098" (2.50mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Series | Nano-Fit 105429 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
