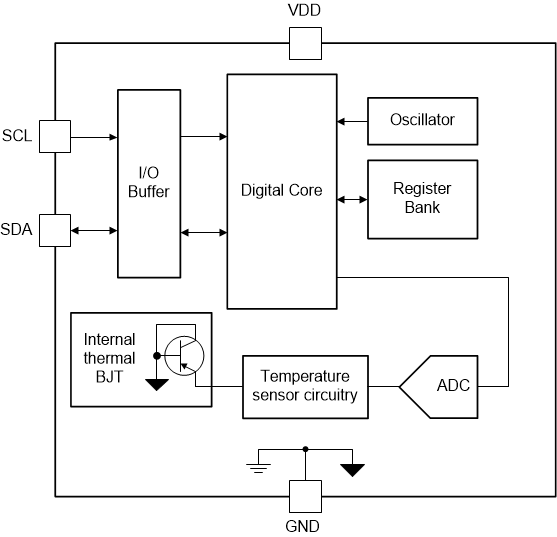

The TMP114 is a high accuracy, I 2C-compatible digital temperature sensor in an ultra-thin (0.15 mm) 4-pin package. The small size and low height of the TMP114 package optimizes volume constrained systems and enables novel placement of the sensor under other surface mount components for the fastest and most accurate temperature measurement. The TMP114 has an accuracy of ±0.2°C and offers an on-chip 16-bit analog-to-digital converter (ADC) that provides a temperature resolution of 0.0078°C. The TMP114 is 100% tested on a production setup that is NIST traceable. To maximize battery life, the TMP114 is designed to operate from a supply voltage range of 1.08 V to 1.98 V, with a low average supply current of less than 0.7 µA.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Remote channels (#) | 0 |
| Supply current (max) (µA) | 1.5 |
| AC and DC characteristics | |
| Local sensor accuracy (max) | 0.2, 1 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Temp resolution (max) (bps) | 16 |
| Other | |
| Addresses | 3 |
| Features | 0.15mm Package Height, Slew Rate Warning |
| Interface type | I2C, SMBus |
| Rating | Catalog |
| Type | Local |
