tc1200
Beckhoff

tc1200

Active

TwinCAT 3 PLC realizes one or more PLCs on an Industrial PC. The international standard IEC 61131-3 3rd is used to program the PLC; all programming languages...

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

CPU architecturex86, x64, Arm ®
Included inTC1210, TC1220, TC1250, TC1260, TC1270, TC1275, TF3550, TF3551
IncludesTC1100
Operating systemWindows 7, Windows 10, Windows 11, Windows CE, TwinCAT/BSD, TwinCAT/RTOS, Beckhoff RT Linux ®

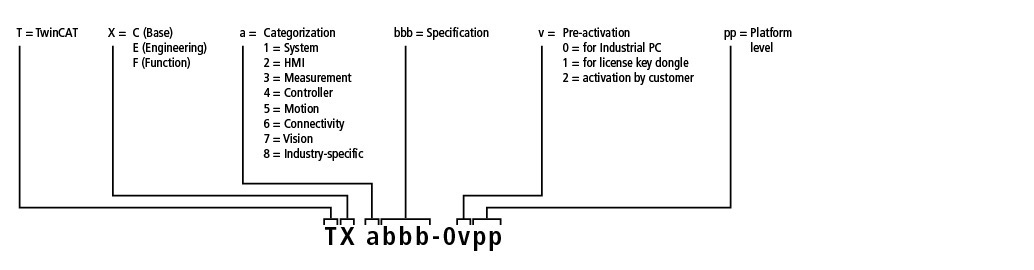

TC1200-0v10TwinCAT 3 PLC, platform level 10 (Basic), already included with industrial PCs with platform level P10
TC1200-0v20TwinCAT 3 PLC, platform level 20 (Economy)
TC1200-0v30TwinCAT 3 PLC, platform level 30 (Economy Plus)
TC1200-0v40TwinCAT 3 PLC, platform level 40 (Performance)
TC1200-0v50TwinCAT 3 PLC, platform level 50 (Performance Plus)
TC1200-0v60TwinCAT 3 PLC, platform level 60 (Mid Performance)
TC1200-0v70TwinCAT 3 PLC, platform level 70 (High Performance)
TC1200-0v80TwinCAT 3 PLC, platform level 80 (Very High Performance)
TC1200-0v81TwinCAT 3 PLC, platform level 81 (Very High Performance)
TC1200-0v82TwinCAT 3 PLC, platform level 82 (Very High Performance)
TC1200-0v83TwinCAT 3 PLC, platform level 83 (Very High Performance)
TC1200-0v84TwinCAT 3 PLC, platform level 84 (Very High Performance)
TC1200-0v90TwinCAT 3 PLC, platform level 90 (Other 1…4 Cores)
TC1200-0v91TwinCAT 3 PLC, platform level 91 (Other 5…8 Cores)
TC1200-0v92TwinCAT 3 PLC, platform level 92 (Other 9…16 Cores)
TC1200-0v93TwinCAT 3 PLC, platform level 93 (Other 17…32 Cores)
TC1200-0v94TwinCAT 3 PLC, platform level 94 (Other 33…64 Cores)
Technical dataTC1200
