km3701

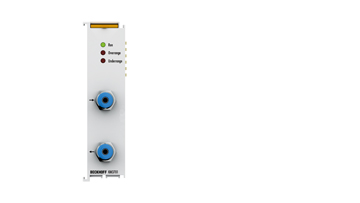

ActiveThe KM3701 analog input terminal measures the differential pressure between two hose connections in a measuring range of ±100 mbar. The pressure value ...
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current consumption K-bus | typ. 15 mA |
| Current consumption power contacts | – (no power contacts) |
| AC and DC characteristics | |
| Resolution | 0.1 hPa (0.1 mbar) per digit |
| Environment and package | |
| Dimensions (W x H x D) | 24 mm x 100 mm x 52 mm |
| Operating temperature | 0…55°C |
| Side by side mounting by means of | double slot and key connection |
| Storage temperature | -25…+85°C |
| Other | |
| Approvals/markings | CE, UL |
| Bit width in the process image | 3 byte input/output |
| Design form | compact terminal housing with signal LEDs |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Housing data | KL-24 |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| KM3701 | Bus Terminal module, 1-channel analog input, differential pressure, ±100 hPa (±100 mbar) |
| KM3701-0340 | Bus Terminal module, 1-channel analog input, differential pressure, ±340 hPa (±340 mbar) |
| Marking | – |
| Material | polycarbonate |
| Max. overload | 500 hPa (500 mbar) differential, 5000 hPa (5 bar) to ambient |
| Measurement error/uncertainty | 3% (relative to full scale value) |
| Measuring range | -100…+100 hPa (-100…+100 mbar) |
| Measuring speed | typ. 5 ms |
| Medium | non-aggressive gases |
| Number of inputs | 1 (differential pressure) |
| Protect. rating/installation pos. | IP20/variable |
| Relative humidity | 95%, no condensation |
| Technical data | KM3701 |
| Technology | differential pressure measurement |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Weight | approx. 100 g |
| Wiring | specific push-in connection |
