km1018

Active

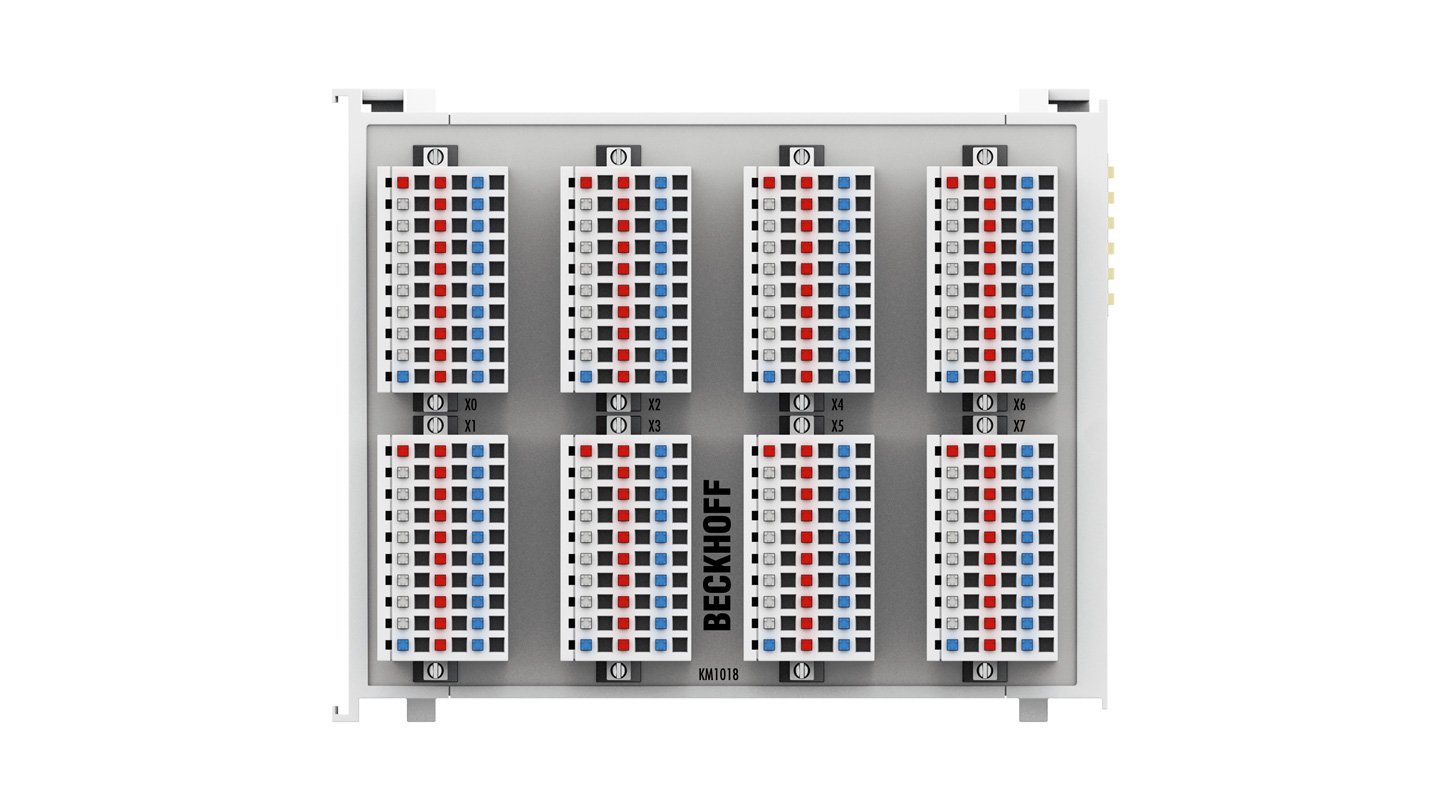

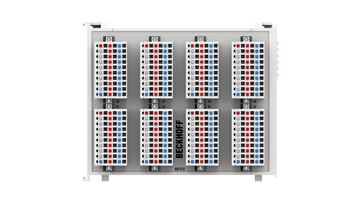

The KM1018 terminal module combines 64 digital inputs with eight channels per connector in a compact design. The control signals are transmitted (electrically...

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
Current consumption K-bus	typ. 3 mA
Current consumption power contacts	– (no power contacts)
Input current	typ. 5 mA
Nominal voltage	24 V DC (-15%/+20%)
Signal voltage “0”	-3…+5 V
Signal voltage “1”	15…30 V
Environment and package
Dimensions (W x H x D)	123 mm x 100 mm x 55 mm
Operating temperature	0…55°C
Side by side mounting by means of	double slot and key connection
Storage temperature	-25…+85°C
Other
Approvals/markings	CE
Bit width in the process image	64 inputs
Configuration	no address or configuration setting
Connection cross-section	0.08…1.5 mm², stranded wire, solid wire
Connection technology	plug
Design form	compact terminal module with pluggable wiring level
Electrical isolation	500 V (K-bus/field potential)
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Housing data	KMx0x8
Input filter	typ. 0.2 ms
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
KM1018-0000	Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms, without connector
KM1018-0001	Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms, 1-wire connector
KM1018-0002	Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms, 1-wire connector with LEDs
KM1018-0004	Bus Terminal module, 64-channel digital input, 24 V DC, 0.2 ms, 3-wire connector with LEDs
Number of inputs	64 (8 x 8)
Protect. rating/installation pos.	IP20/variable
Relative humidity	95%, no condensation
Specification	EN 61131-2, type 1
Stripping length	8 mm
Technical data	KM1018
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Weight	approx. 310 g with 1-pin connector, approx. 390 g with 3-pin connector
