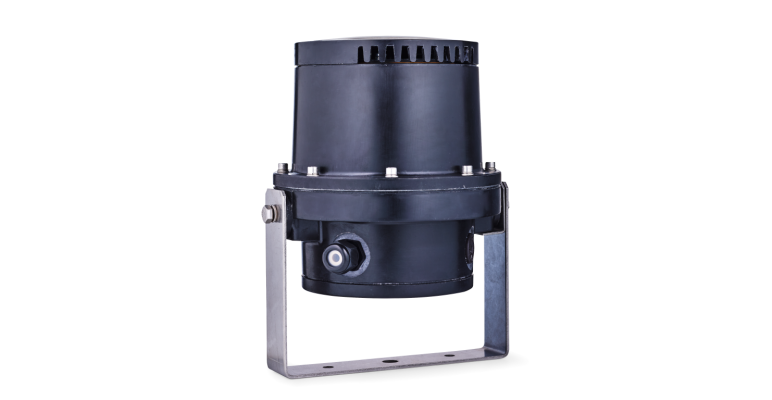

dhh-explosion-proof-signal-horn

Active

Find here explosion proof equipment such as atex lights and sounders for potentially explosive atmospheres for flammable, gases and vapor zones.

All alternatives

Environment and package
Operating temperature	-20 °C / +75 °C (T5) -50 °C / +70 °C (T6)
Type of mounting	horizontal, vertical or any, sound outlet preferably at front or bottom
Other
Approval	PTB 01 ATEX 1133
Cable entry	1x cable gland M20 x 1.5, 1x sealing plug M20 x 1.5
Connection technology	1.5 mm² fine wire and 2.5 mm² single wire
Degree of protection	IP66
Duty cycle	100 %
Housing	Ø 190 mm, glass-fibre-reinforced polyester
Insulation class	II
Tone	Steady tone
Volume	max. 105 dB
Weight	5,5 kg
