Honeywell Sensing and Productivity SolutionsUnited States

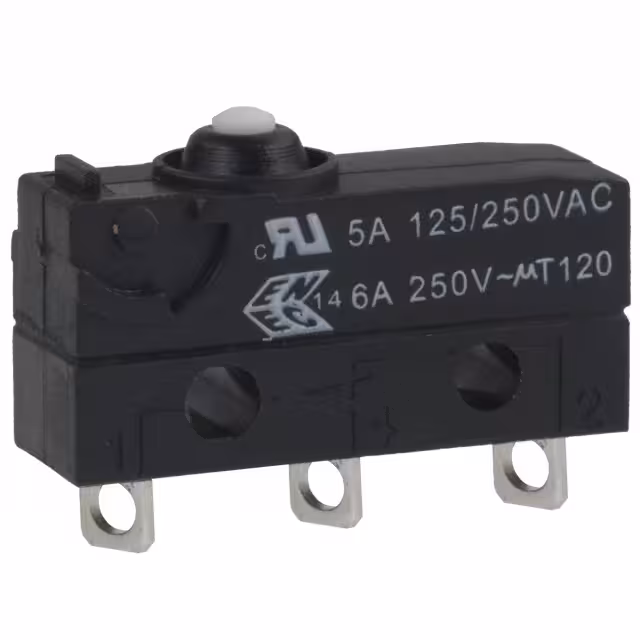

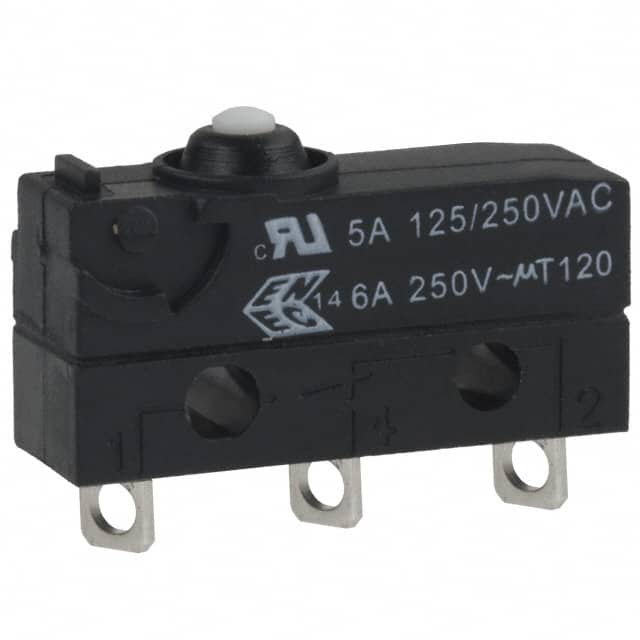

SWITCH SNAP ACTION SPDT 5A 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 5A (AC) |
| Voltage Rating - AC | 125 V |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~120°C |
| Package | Bulk |
| Other | |
| Actuator Type | Round (Pin Plunger) |
| Base Product Number | ZW50 |
| Circuit | SPDT |
| Differential Travel | 0.008" (0.2mm) |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Ingress Protection | IP00 |
| Mechanical Life | 2,000,000 Cycles |
| Mfr | Honeywell Sensing and Productivity Solutions |
| Operating Force | 203gf |
| Operating Position | 0.330" (8.4mm) |
| Overtravel | 0.025" (0.6mm) |
| Pretravel | 0.047" (1.2mm) |
| Product Status | Active |
| Release Force | 50gf |
| Series | ZW |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
