Diotec SemiconductorGermany

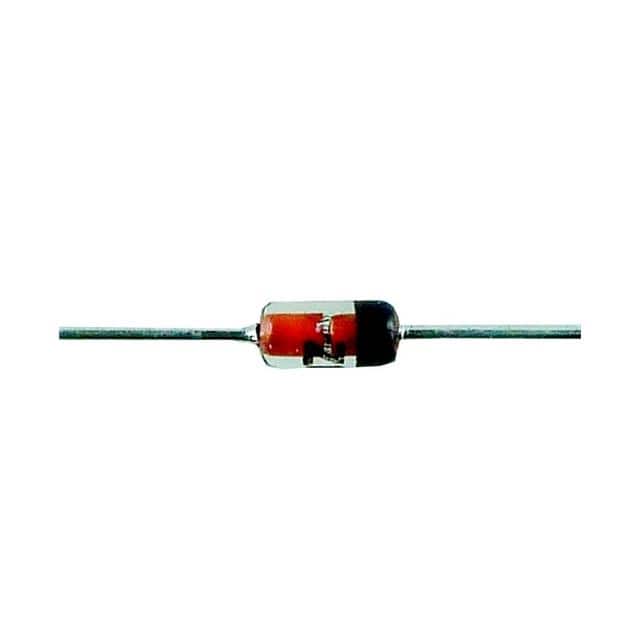

ZENER, DO-35, 11V, 0.5W, 2%
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage11 V
Tolerance2 %
Power500 mWMax
Zener impedance6 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA @ 8.5 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Voltage - Zener (Nom) (Vz) | 11 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 6 Ohms |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -50°C~175°C(TJ) |
| Package | Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 |
| Other | |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Tolerance | ±2% |
