Diotec SemiconductorGermany

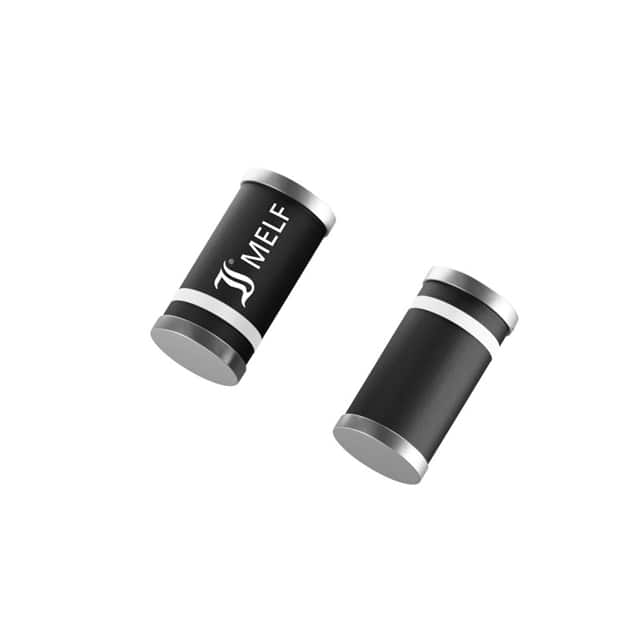

ZENERDIODE,MELF,20V,1.3W,2%
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage20 V
Tolerance2 %
Power1.3 WMax
Zener impedance6 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA @ 10 V |
| Power - Max | 1.3 W |
| Voltage - Zener (Nom) (Vz) | 20 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 6 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -50°C~175°C(TJ) |
| Package | Strip |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | MELF DO-213AB |
| Other | |
| Mfr | Diotec Semiconductor |
| Product Status | Active |
| Series | - |
| Tolerance | ±2% |
