Diodes IncorporatedUnited States

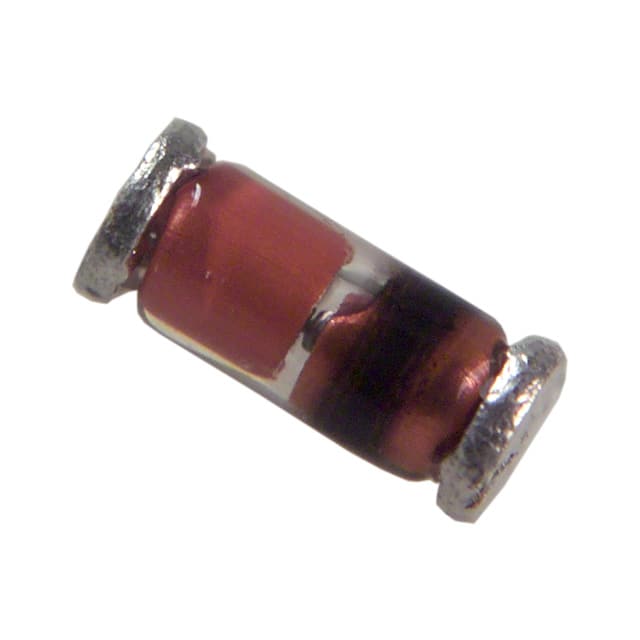

DIODE ZENER 7.5V 500MW MINI MELF
All alternatives
View full reportTechnical parameters
Key specs
Zener voltage7.5 V
Tolerance5 %
Power500 mWMax
Zener impedance6 ΩMax
| Power | |
|---|---|
| Current - Reverse Leakage @ Vr | 3 µA @ 6 V |
| Power - Max | 500 mW |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Voltage - Zener (Nom) (Vz) | 7.5 V |
| AC and DC characteristics | |
| Impedance (Max) (Zzt) | 6 Ohms |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -65°C~175°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

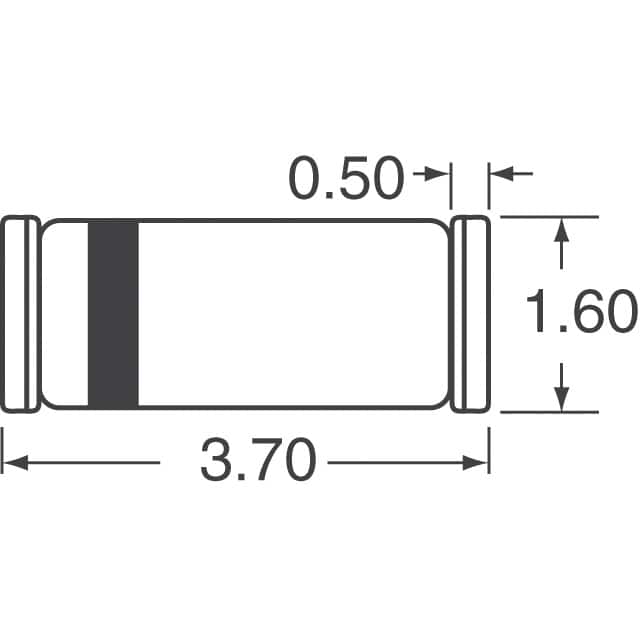

| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | Mini MELF |
| Other | |
| Base Product Number | ZMM5236 |
| Mfr | Diodes Incorporated |
| Product Status | Obsolete |
| Series | - |
| Tolerance | ±5% |
