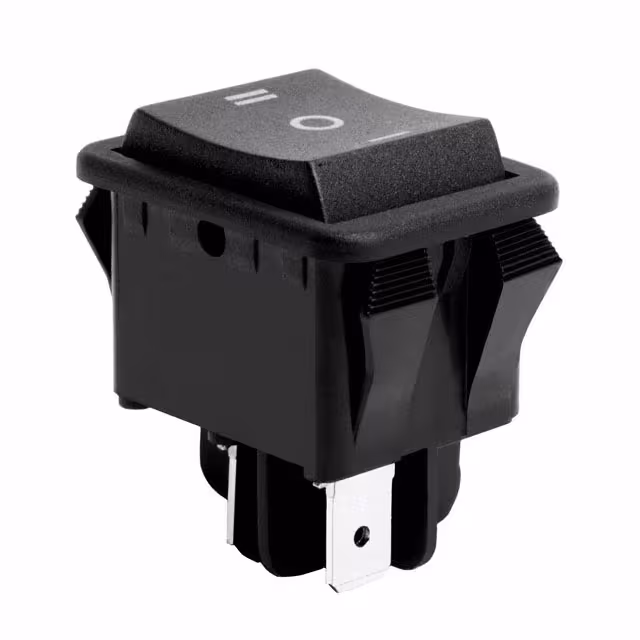

YRM33F2BBBNN
ZF ElectronicsGermany

YRM33F2BBBNN

ActiveRocker Switches

SWITCH ROCKER DPDT 20A 125V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

CircuitDPDT
Switch functionOn-On
Current rating20 AMax
Voltage rating125 VMax
Power
Current Rating (Amps)20A (AC)
Illumination Voltage (Nominal)-
Voltage Rating - AC125 V
Environment and package
Mounting TypePanel Mount, Snap-In
Operating Temperature0°C~85°C
PackageBulk
Panel Cutout DimensionsRectangular - 30.00mm x 22.00mm
Other
Actuator MarkingNo Marking
Actuator TypeConcave (Curved)
Base Product NumberYRM33F2B
CircuitDPDT
Color - Actuator/CapBlack
Electrical Life6,000 Cycles
Features-
Illumination Type, Color-
Ingress Protection-
Mechanical Life50,000 Cycles
MfrZF Electronics
Product StatusActive
SeriesYR
Switch FunctionOn-On
Termination StyleQuick Connect - 0.250" (6.3mm)
