Littelfuse Inc.United States

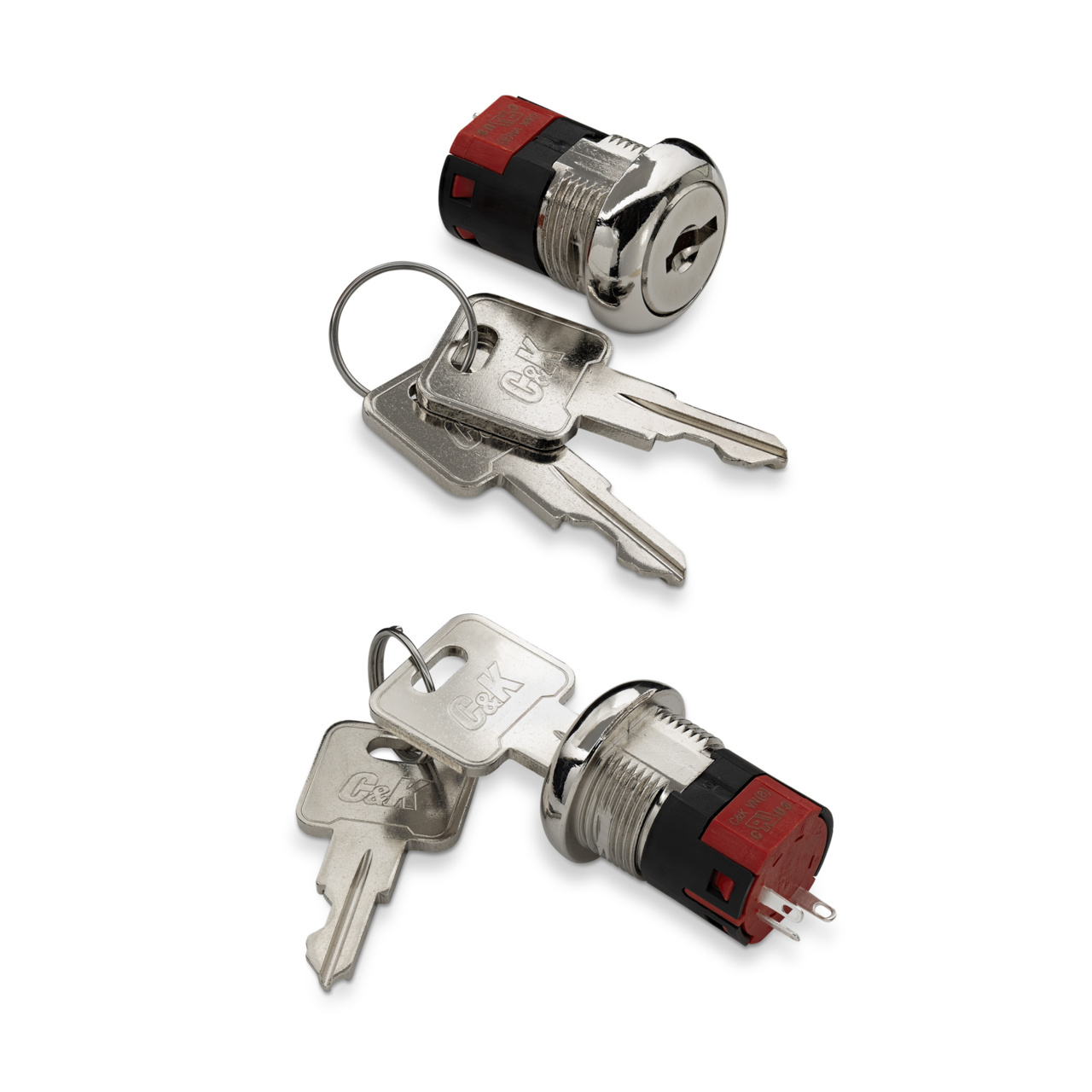

SWITCH Y2011U2C203NG
All alternatives
View full reportTechnical parameters
Key specs
Switch functionOn-Off-On
| Power | |
|---|---|
| Electrical Rating - Activated - Voltage AC | Max 125 Volt |
| Electrical Rating - Activated - Voltage DC | Max 28 Volt |
| Rating - Maximum Current | 4 A |
| Environment and package | |
| Mounting Method | Nut |
| Other | |
| Activation Type | Momentary action |
| Actuator | Flat Key |
| Circuitry | SPST NO |
| Color & Finish | LOCK Stainless steel facing |
| Contact Plating | Gold over silver |
| Electrical Life Cycles | 10000 |
| Illumination | Not applicable |
| Switch Function | On-Off-On |
| Terminals Complementary Information | Solder lugs with Hole |
| Terminals Plating | Gold over silver |
| Terminals Type | Solder Lugs |
