VPG Foil ResistorsUnited States

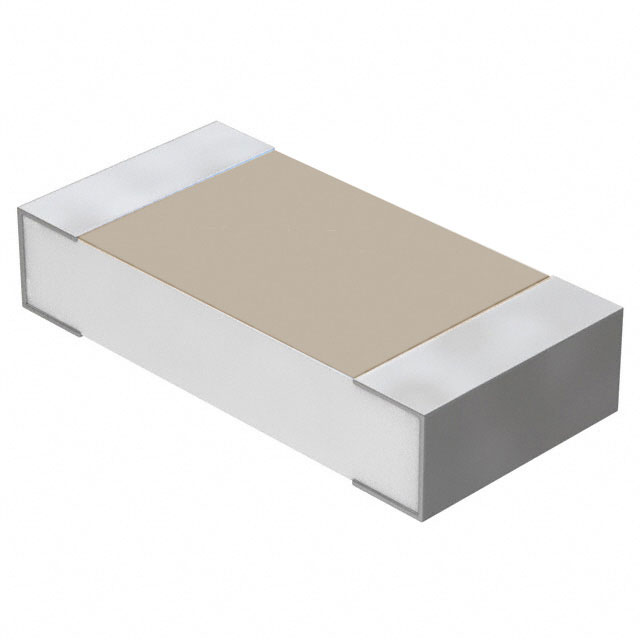

Y16301K00000F9W
Chip Resistor - Surface MountRES SMD 1K OHM 1% 1/4W 1206
All alternatives
View full reportTechnical parameters
Key specs
Resistance1 kΩ
Tolerance1 %
Power250 mW
Temperature coefficient200 mppm/°C
| Power | |
|---|---|
| Power (Watts) | 0.25W, 1/4W |
| Environment and package | |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.062" W (3.20mm x 1.57mm) |
| Supplier Device Package | 1206 |
| Temperature Coefficient | ±0.2ppm/°C |
| Other | |
| Composition | Metal Foil |
| Failure Rate | - |
| Features | Anti-Sulfur, Moisture Resistant, Non-Inductive |
| Mfr | VPG Foil Resistors |
| Number of Terminations | 2 |
| Packaging | Tray |
| Part Status | Active |
| Resistance | 1 kOhms |
| Series | VFCP |
| Tolerance | ±1% |
