Y16301K00000F9W
Vishay Foil Resistors (Division of Vishay Precision Group)United States

Y16301K00000F9W

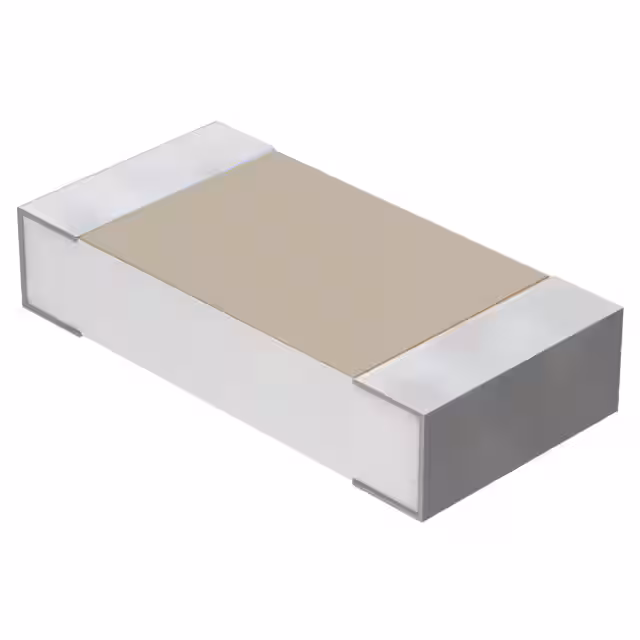

ActiveChip Resistor - Surface Mount

RES SMD 1K OHM 1% 1/4W 1206

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance1 kΩ
Tolerance1 %
Power250 mW
Temperature coefficient200 mppm/°C
Power
Power (Watts)0.25W, 1/4W
Environment and package
Height - Seated (Max)0.025" (0.64mm)
Operating Temperature-55°C~150°C
PackageTray
Package / Case1206 (3216 Metric)
Size / Dimension0.126" L x 0.062" W (3.20mm x 1.57mm)
Supplier Device Package1206
Temperature Coefficient±0.2ppm/°C
Other
CompositionMetal Foil
Failure Rate-
FeaturesAnti-Sulfur, Moisture Resistant, Non-Inductive
MfrVishay Foil Resistors (Division of Vishay Precision Group)
Number of Terminations2
Product StatusActive
Resistance1 kOhms
SeriesVFCP
Tolerance±1%

Documents

No documents are linked to this part yet.
