VPG Foil ResistorsUnited States

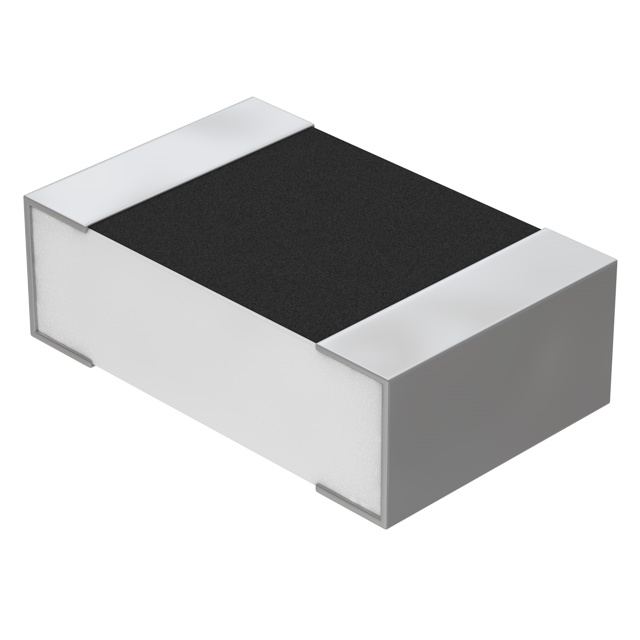

Y162450R0000D9R
Chip Resistor - Surface MountRES SMD 50 OHM 0.5% 1/5W 0805
All alternatives
View full reportTechnical parameters
Key specs
Resistance50 Ω
Tolerance500 m%
Power200 mW
Temperature coefficient200 mppm/°C
| Power | |
|---|---|
| Power (Watts) | 0.2W, 1/5W |
| Environment and package | |
| Height - Seated (Max) | 0.025" (0.64mm) |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Supplier Device Package | 0805 |
| Temperature Coefficient | ±0.2ppm/°C |
| Other | |
| Composition | Metal Foil |
| Failure Rate | - |
| Features | Moisture Resistant, Non-Inductive |
| Mfr | VPG Foil Resistors |
| Number of Terminations | 2 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Resistance | 50 Ohms |
| Series | VSMP |
| Tolerance | ±0.5% |
Documents
No documents are linked to this part yet.
