Y11211K00000T9L
VPG Foil ResistorsUnited States

Y11211K00000T9L

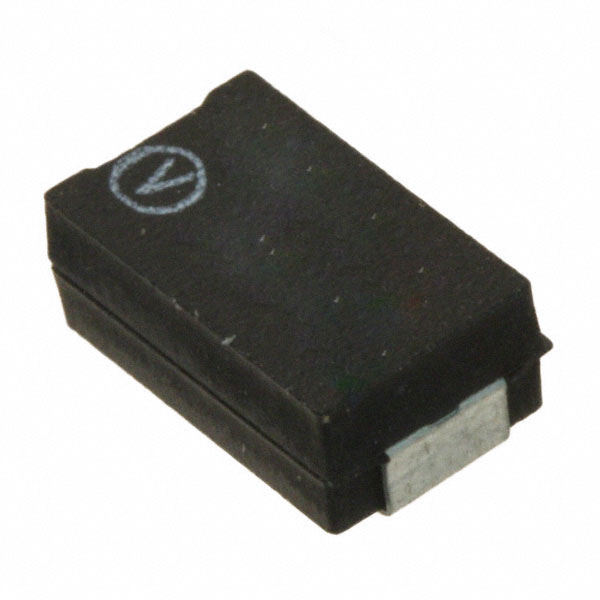

Chip Resistor - Surface Mount

RES SMD 1K OHM 0.01% 1/4W J LEAD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance1 kΩ
Tolerance10 m%
Power250 mW
Temperature coefficient2 ppm/°C
Power
Power (Watts)0.25W, 1/4W
Environment and package
Height - Seated (Max)0.110" (2.79mm)
Operating Temperature-55°C ~ 175°C
Package / Case2512 J-Lead
Size / Dimension0.236" L x 0.126" W (5.99mm x 3.20mm)
Supplier Device PackageSMD
Temperature Coefficient±2ppm/°C
Other
CompositionMetal Foil
Failure Rate-
FeaturesMoisture Resistant, Non-Inductive, Pulse Withstanding
MfrVPG Foil Resistors
Number of Terminations2
PackagingBulk
Part StatusActive
Resistance1 kOhms
SeriesSMR1D
Tolerance±0.01%

Documents

No documents are linked to this part yet.
