C&KUnited States

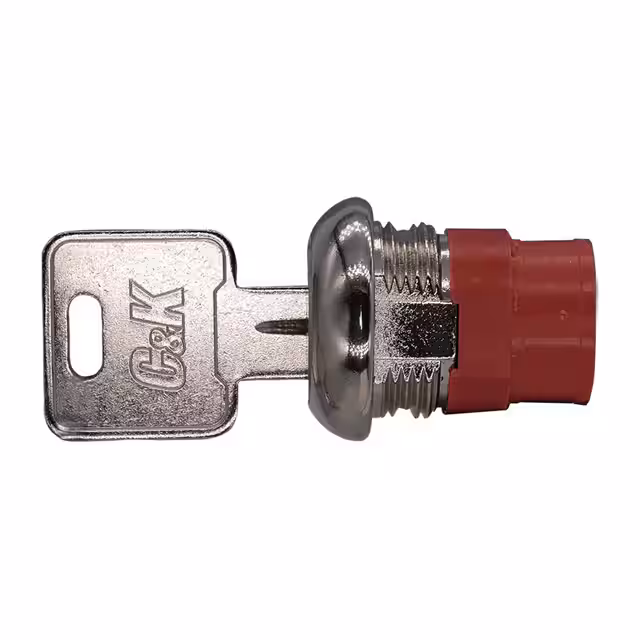

SWITCH KEYLOCK 2POS SPDT 4A 125V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 4A (AC/DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | - |
| Package | Tray |
| Panel Cutout Dimensions | Circular - 19.30mm Dia |
| Other | |
| Actuator Type | Flat Key |
| Angle of Throw | 90° |
| Base Product Number | Y101132B |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Depth Behind Flange | 23.14mm |
| Electrical Life | 10,000 Cycles |
| Features | - |
| Key Removable Positions | 1 only |
| Mechanical Life | - |
| Mfr | C&K |
| Number of Positions | 2 |
| Product Status | Active |
| Series | Y |
| Switch Function | On-On |
| Termination Style | Wire Leads |
