Y09262R00000A0L
Vishay Foil Resistors (Division of Vishay Precision Group)United States

Y09262R00000A0L

ActiveThrough Hole ResistorsTO-220

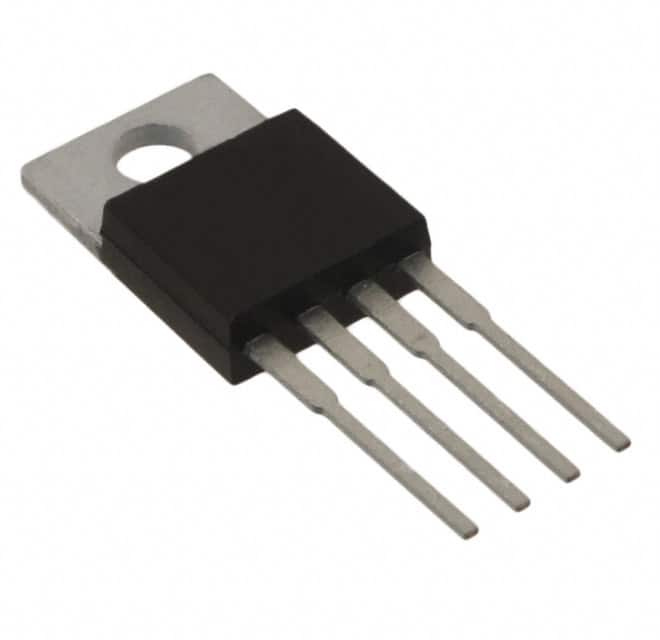

RES 2 OHM 8W 0.05% TO220-4

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Resistance2 Ω
Tolerance50 m%
Power8 W
Temperature coefficient2 ppm/°C
Power
Power (Watts)8W
Environment and package
Height - Seated (Max)0.845" (21.46mm)
Operating Temperature-55°C~150°C
PackageBulk
Package / CaseTO-220-4
Size / Dimension0.400" L x 0.150" W (10.16mm x 3.81mm)
Supplier Device PackageTO-220
Temperature Coefficient±2ppm/°C
Other
CompositionMetal Foil
Failure Rate-
FeaturesNon-Inductive
MfrVishay Foil Resistors (Division of Vishay Precision Group)
Number of Terminations4
Product StatusActive
Resistance2 Ohms
SeriesVPR221
Tolerance±0.05%

Documents

No documents are linked to this part yet.
