Nexperia USA Inc.Netherlands
DOUBLE-POLE DOUBLE-THROW ANALOG
All alternatives
View full reportTechnical parameters
Key specs
Switch circuitDPDT
Circuits2
On-resistance900 mΩMax
Supply voltage1.4 ~ 4.3 V
| Power | |
|---|---|
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Channel-to-Channel Matching (ΔRon) | 130mOhm (Max) |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Voltage - Supply, Dual (V±) | - |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| AC and DC characteristics | |
| -3db Bandwidth | 40MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

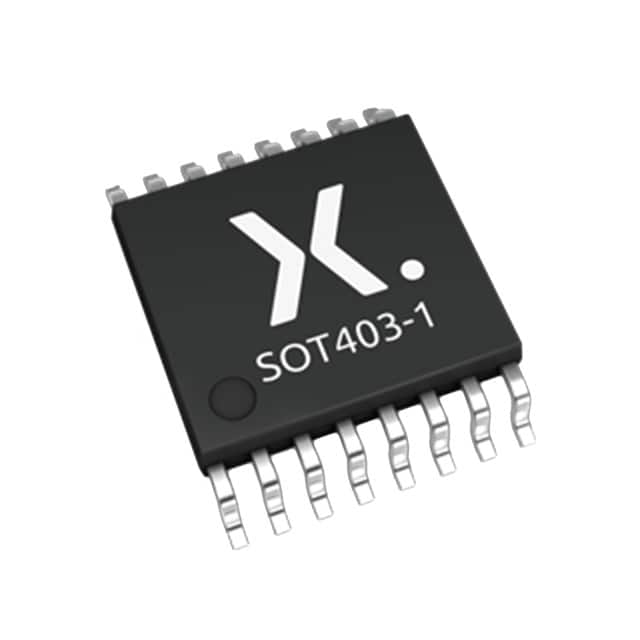

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Other | |
| Charge Injection | 15pC |
| Crosstalk | -90dB @ 100kHz |
| Mfr | Nexperia USA Inc. |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 900mOhm |
| Product Status | Active |
| Series | - |
| Switch Circuit | DPDT |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
