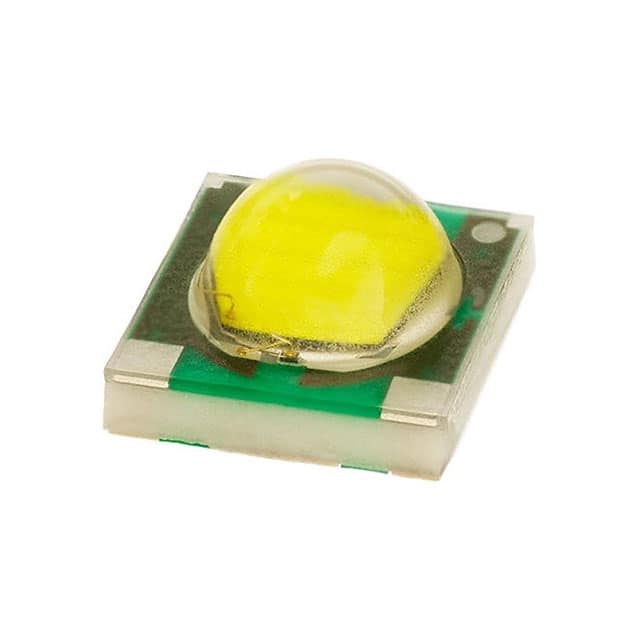

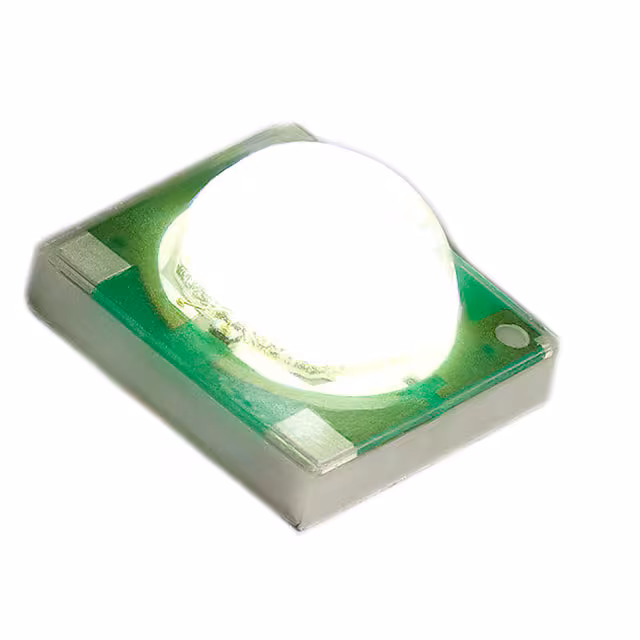

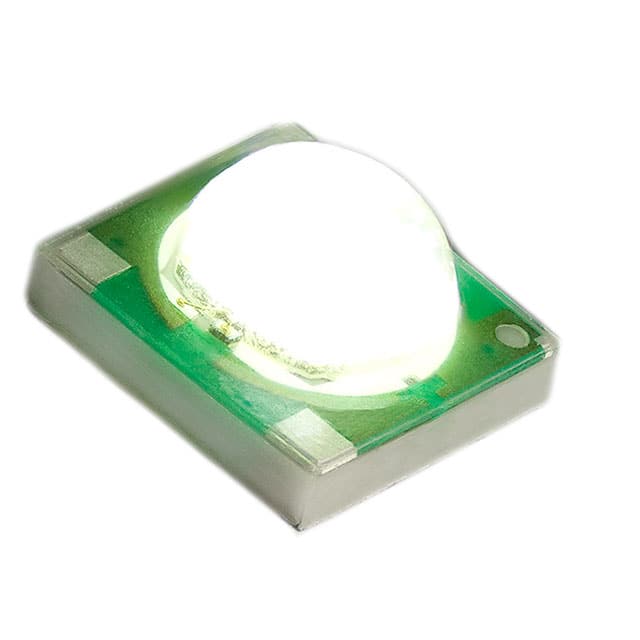

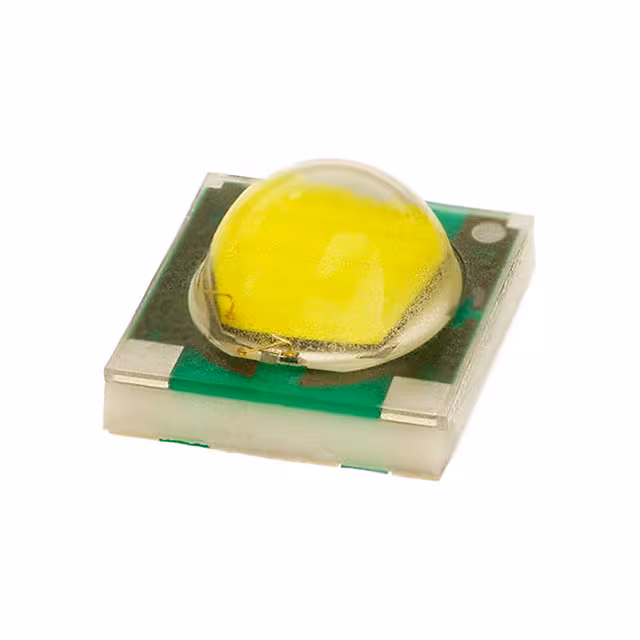

XPGWHT-H1-0000-00EE5

LED XLAMP NEUTRAL WHT 4000K 2SMD

All alternatives

Power
Current - Max	1.5A
Current - Test	350mA
Flux @ 25°C, Current - Test	118lm (114lm ~ 122lm)
Flux @ 85°C, Current - Test	-
Lumens/Watt @ Current - Test	116 lm/W
Voltage - Forward (Vf) (Typ)	2.9V
Environment and package
Height - Seated (Max)	0.084" (2.13mm)
Mounting Type	Surface Mount
Package	Tape & Reel (TR)
Package / Case	1414 (3535 Metric)
Size / Dimension	0.136" L x 0.136" W (3.45mm x 3.45mm)
Supplier Device Package	-
Thermal Resistance of Package	4°C/W
Other
Base Product Number	XPGWHT
CCT (K)	4000K
Color	White, Neutral
CRI (Color Rendering Index)	80
Mfr	CreeLED, Inc.
Product Status	Active
Series	XLamp® XP-G
Viewing Angle	125°

No documents are linked to this part yet.
