PanasonicJapan
TRANS NPN/PNP 50V 0.5A MINI6
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 300mW |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 85 @ 150mA, 10V |
| Frequency - Transition | 200MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

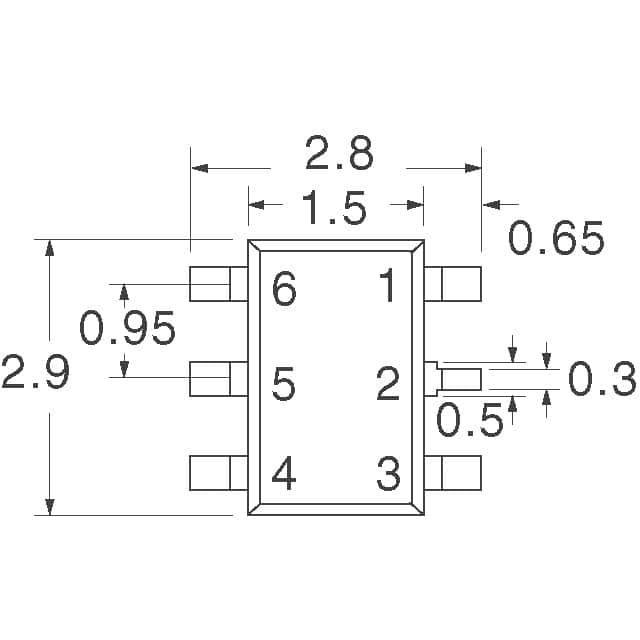

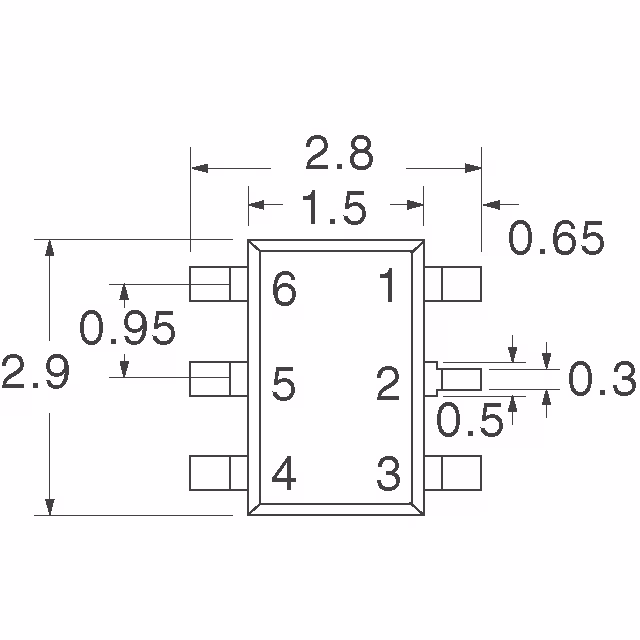

| Package / Case | SOT-23-6 |
| Supplier Device Package | MINI6-G1 |
| Other | |
| Base Product Number | XN0460 |
| Mfr | Panasonic Electronic Components |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 30mA, 300mA |
