XMLCTW-A0-0000-00C3AAAA1

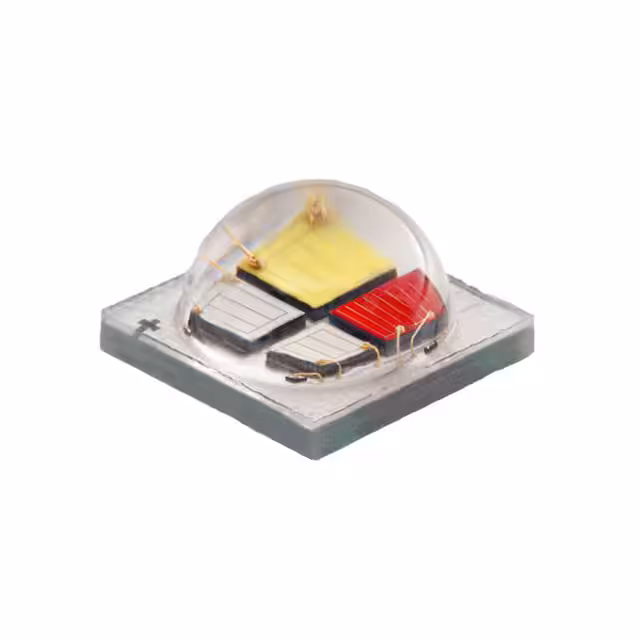

LED XLAMP XML RGBW SMD

All alternatives

Power
Current - Max	1A Red, 1A Blue, 1A Green, 1A White
Current - Test	350mA Red, 350mA Green, 350mA Blue, 350mA White
Lumens/Watt @ Current - Test	85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White
Voltage - Forward (Vf) (Typ)	2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White
Environment and package
Height - Seated (Max)	0.124" (3.15mm)
Luminous Flux @ Current/Temperature	67lmRed,101lmGreen,27lmBlue,110lmWhite
Mounting Type	Surface Mount
Package	Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Package / Case	2020 (5050 Metric)
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Supplier Device Package	SMD
Temperature - Test	25°C
Thermal Resistance of Package	3.5°C/W
Other
Base Product Number	XMLCTW
Color	Red, Green, Blue, White - Cool (RGBW)
Mfr	CreeLED, Inc.
Product Status	Obsolete
Series	XLamp® XM-L
Viewing Angle	130°
Wavelength	625nm Red, 528nm Green, 458nm Blue, 6850K White
