CreeLED, Inc.United States

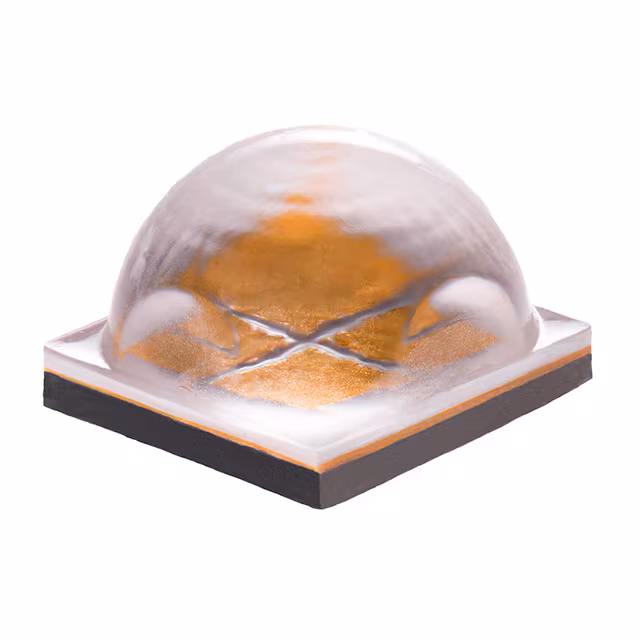

LED XLAMP XH-P50 WHITE SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 3A, 1.5A |
| Current - Test | 1.4A, 700mA |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 755lm (730lm ~ 780lm) |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Voltage - Forward (Vf) (Typ) | 6V, 12V |
| Environment and package | |
| Height - Seated (Max) | 0.146" (3.71mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | 2020 (5050 Metric) |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 1.2°C/W |
| Other | |
| Base Product Number | XHP50A |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Color | White, Warm |
| CRI (Color Rendering Index) | 90 |
| Mfr | CreeLED, Inc. |
| Product Status | Obsolete |
| Series | Xlamp® XHP50 |
| Viewing Angle | 120° |
Documents
No documents are linked to this part yet.
