CreeLED, Inc.United States

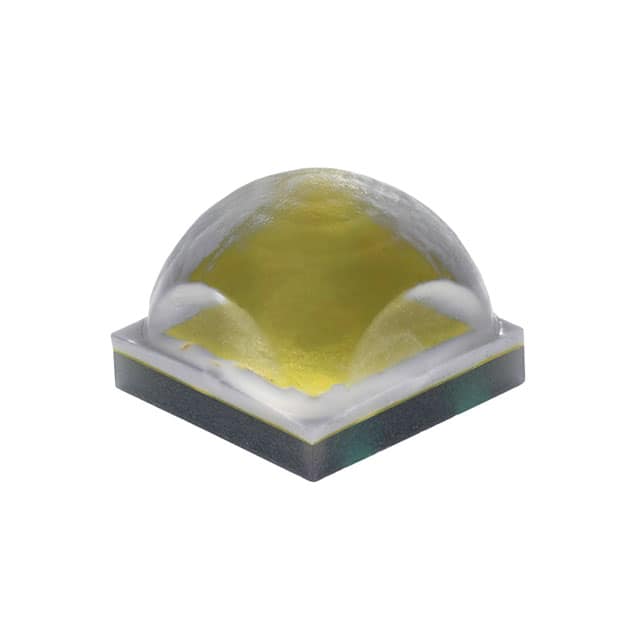

LED XLAMP XHP35 NEU WHT 4500K
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 1.05A |
| Current - Test | 350mA |
| Flux @ 25°C, Current - Test | - |
| Flux @ 85°C, Current - Test | 530lm (510lm ~ 550lm) |
| Lumens/Watt @ Current - Test | 134 lm/W |
| Voltage - Forward (Vf) (Typ) | 11.3V |
| Environment and package | |
| Height - Seated (Max) | 0.115" (2.93mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Size / Dimension | 0.136" L x 0.136" W (3.45mm x 3.45mm) |
| Supplier Device Package | - |
| Thermal Resistance of Package | 1.8°C/W |
| Other | |
| CCT (K) | 4500K 5-Step MacAdam Ellipse |
| Color | White, Neutral |
| CRI (Color Rendering Index) | 80 |
| Mfr | CreeLED, Inc. |
| Product Status | Obsolete |
| Series | Xlamp® XHP35 |
| Viewing Angle | 125° |
